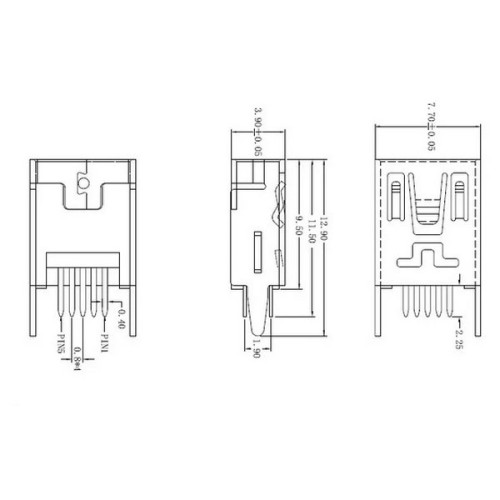

Mini USB female socket - 5+4 pin - straight

The Mini USB female socket with 5+4 pins, with a simple design, is an electronic component designed to be mounted on a printed circuit board (PCB), which allows quick and effective connection to external devices. This is a variant of the Mini USB connector that offers additional pins (9 in total), providing expanded connection options for power and data transmission. Here are the detailed characteristics and uses of this product:

Characteristic:

• Connector type: Mini USB, female, known for its high compatibility with many older electronic devices.
• Pin configuration: 5 pins dedicated to standard USB functions (data transfer and power supply) and an additional 4 pins that can be used for additional functions or custom power supply.
• Simple design: Enables easy assembly and soldering directly to the PCB, which is crucial in the design of compact electronic devices.
• Application: Perfect for devices that require a solid USB connection in a small form factor, such as cameras, MP3 players, GPS devices, as well as some older smartphones and tablets.

Usage:

1. Portable devices: Cameras, MP3 players, and other gadgets that use a Mini USB connection for charging and data transfer.
2. Navigation devices: GPS and other navigation systems that require a reliable connection to a computer or power source.
3. Prototyping and DIY projects: For electronics hobbyists and engineers designing prototypes of devices that require a stable USB connection.
4. Repairs and upgrades: Replacing damaged or outdated USB ports on older devices.

Benefits:

• Extended functionality: Thanks to additional pins, the user can adapt the connector to the specific needs of the project, e.g. to implement non-standard power supply schemes.
• High Compatibility: The Mini USB connector is widely recognized and accepted in many devices, making integration easy.
• Durability: Simple but solid construction ensures long service life of the connections.
• Compact size: Perfect solution for devices with limited space, allowing for efficient organization of electronic components.

The Mini USB female socket with 5+4 pins, with a simple design, is a universal solution that provides a reliable USB connection in a wide range of electronic applications, from portable devices to advanced projects and prototypes.

• Rated voltage: 40V
• Rated current: 1 A
• Temperature range: -40 to +70 °C
