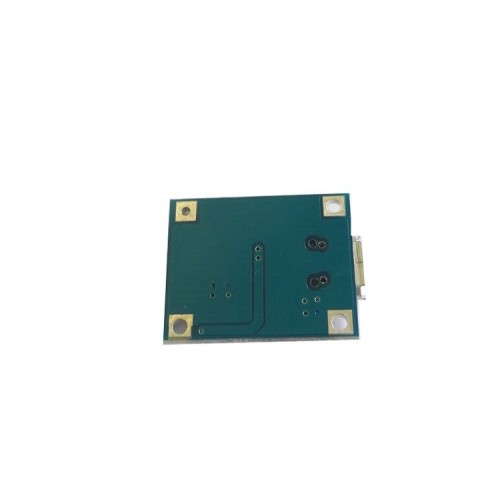

MicroUSB charger - 1000mA for Li-pol 1S (3.7V) - TP4056

Product Code: ABC-5483
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-05-16
1.30€
Ex Tax: 1.07€

Qty

Charger for 1S packages. Extremely small and light charger for 1S lithium packages (Li-Pol, Li-Ion) for a voltage of 3.7 V. The charger is conveniently powered via the MicroUSB socket (voltage 5 V). So you can use a smartphone rider with a current capacity of min. 1 A. The module is also equipped with soldering pads, thanks to which you can connect a 5 V power supply from wires, another power source than USB. The module informs about the charging status or charging via two LEDs.

Specification:

  • Type of charged cells: Li-Pol, Li-Ion
  • Charging cut-off voltage 4.2 V
  • Supply voltage 5 V (4.5-5.5 V) (from microUSB)
  • Real charging current: 990 - 1000 mA (possibility of changing the charging current by changing the resistor - R PROG)
  • Power and charge indication with LEDs (red and green)
  • NOTE: no protection against reverse polarity of the cell
  • Dimensions: 22 x 17 mm
  • Weight: 1.5 g
