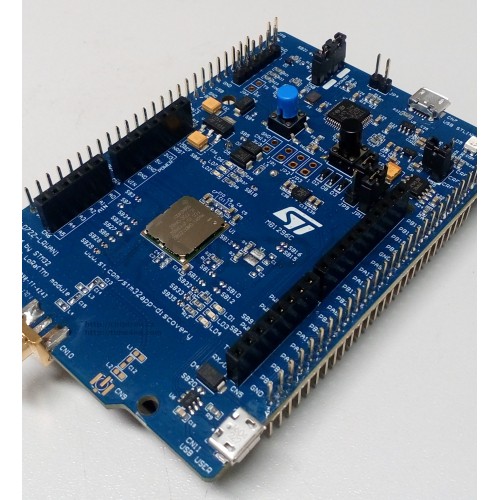

Microcontroller LoRa Murata CMWX1ZZABZ-091

The module allows to implement projects based on the popular 32-bit microcontroller families STM32. Thanks to Discovery to test the capabilities of the ARM Cortex M0+. To create a software to facilitate libraries and many examples are available on the website of the company ST. Also on-Board programmer/debugger ST-LINK/V2, LEDs, buttons, antenna, connector for Arduino UNO and USB OTG connector format micro-USB - B.

Specification

• Module Lora Murata CMWX1ZZABZ-091
• Microcontroller: STM32L072CZ
• Core: ARM Cortex M0+
• Flash memory: 192 kb
• RAM: 20 KB
• EEPROM memory: 20 KB
• 4 channel, 12-bit ADC, 2 DAC
• 6-bit timers, LP-UART, I2C, SPI
• Laura, FSK, GFSK, MSK, GMSK and OOK modulation
• Output power: +14 dBm or +20 dBm - for choice
• The maximum budget for links: 157 dB
• Programmable bit rate of 300 KB/sec
• Bullet-proof front end: IIP3 = -12.5 dBm
• Low RX current: 10 mA
• Fully integrated synthesizer with a resolution 61 Hz
• Built-in synchronizer bits for the clock recovery
• RSSI dynamic range: 127 dB
• On the Board is
• Connectors: SMA and U. FL
• Built-in antenna RF SMA 50 Ohm
• Programmer/debugger ST-LINK/V2
• LEDs x7
• Button
• Connectors Arduino UNO V3
• OTG connector micro USB type B

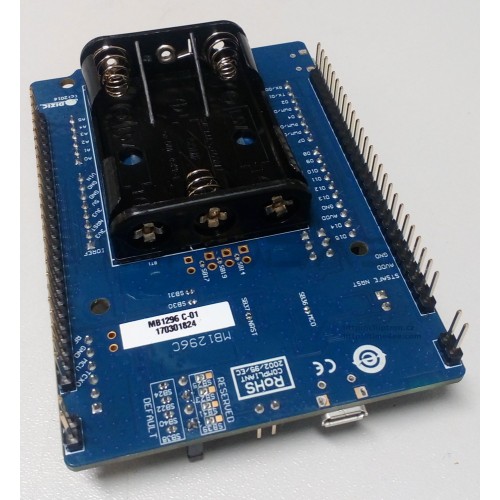

• Basket for AAA batteries
• Protocols: LoRaWAN, LPWAN
• Power supply: USB connector Vin / 3.3 V or battery

Set includes

• Tile STM32L0
• Antenna
