Microcontroller Core429I STM32F4 Core Board

Module with 32-bit microcontroller allows to investigate system family STM32F, with ARM Cortex M4, 180 MHz, 1 MB Flash, 256 kB SRAM. In addition, the Board has a 64 MB SRAM. Based on the system STM32F429IGT6.

Specification

• Processor STM32F429IGT6:
  • 6 x SPI
  • 4 x USART
  • 4 x UART
  • 2 x I2S
  • 3 x I2C
  • 1 x SAI
  • 1 x FMC
  • 1 x sdio format
  • 2 x CAN
  • 1 x LCD display TFT
  • 1 x USB 2.0 HS / FS(with dedicated DMA)
  • 1 x USB HS ULPI (external PHY is needed)
  • 1 x Ethernet 10 / 100
  • 1 x camera interface-8 to 14 bits
• Frequency: 180 MHz
• Supply voltage: from 1.8 V to 3.6 V
• Flash memory: 1024 KB
• SRAM: 256 KB
• Communication interfaces:
• 3 x inverter A/C: 12-bit
• 2 x Converter for C/A: 12-bit
• Debugging / programming: supports interface, JTAG / SWD, IAP support
• In addition, the circuit Board 64 Mbity SRAM
• The Reset Button
• The mini-usb port (included USB cable - mini usb)
• Terminal pitch: 2 mm
• Dimensions: 83 x 57,50 mm

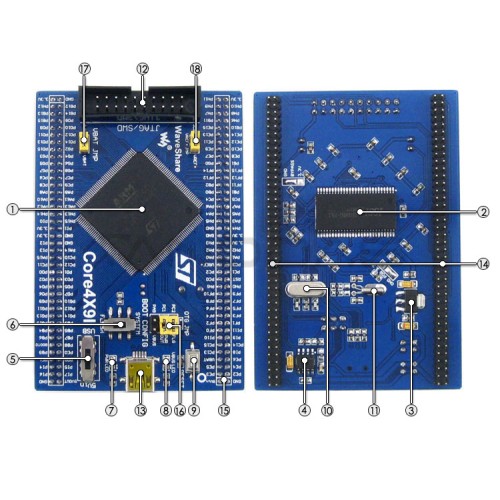

What is on Board?

1. Processor STM32F429IGT6
2. IS42S16400J: SDRAM, 1 MB x 16 b x 4 banks (64 Mb)
3. AMS1117-3.3: voltage regulator 3.3 V
4. MIC2075: built-in power management USB
5. Power switch: USB or 5VIN contact
6. Selection of loading mode: for configuring the BOOT0 contact
7. The led indicating the power
8. Led VBUS
9. The RESET button
10. The quartz resonator 8 MHz
11. The quartz resonator 32.768 kHz for internal RTC with calibration
12. Interface JTAG / SWD for debugging and programming
13. MiniUSB connector
14. Removed pins CPU
15. Pin-5VIN: power supply is required when using USB HOST/OTG
16. Jumper USB HOST/OTG
17. VBAT jumper
18. VREF jumper
