Micro Metal Motor Encoder - sideways - 2 pcs - Pimoroni PIM605

Brand: PiMoroni
Product Code: AN-21944
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
17.00€
Ex Tax: 14.05€

Qty

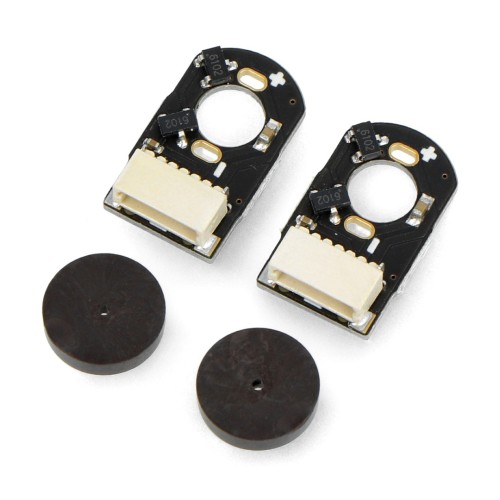

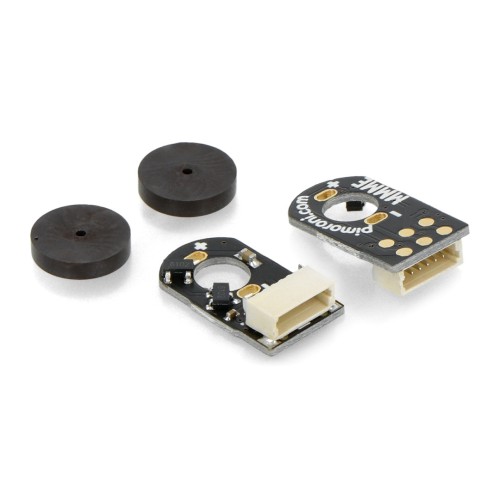

Set consisting of two magnetic quadrature encoders with side connectors for micro-type motors. The encoder should be soldered to the motor connectors and the magnet should be mounted on its shaft. The sensor uses the Hall effect and magnetic disks so that the microcontroller can read feedback on how fast the motor is moving. The assembled motor with encoder can be connected to the controller, e.g. Motor 2040 by means of the JST 6-pin cable.

Specification:
  • Encoder supply voltage: 3.3 V
  • Encoder outputs: A and B
  • Connector: 6-pin JST
  • Purpose: micro motor
  • Type: side
Set includes:
  • 2x MMME encoder
  • 2x 6-pole magnetic disk
