Micro:IoT - expansion board for BBC micro:bit IoT - ElecFreaks EF03426
Brand: ElecFreaks
Product Code: AN-17521
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-22
Product Code: AN-17521
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-22
Ex Tax: 23.39€

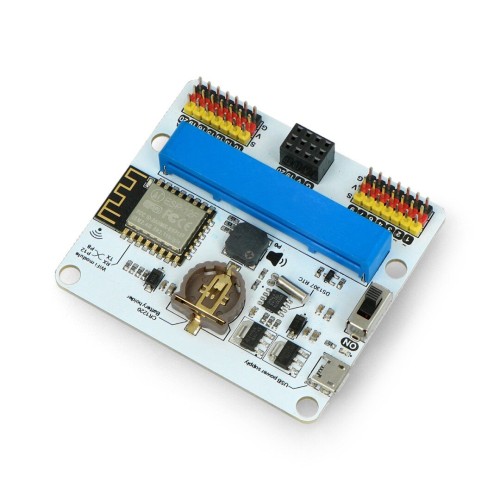

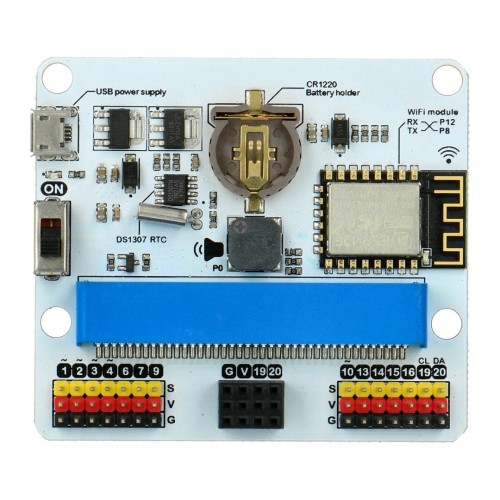

IoT-based expansion board for micro:bit. It uses an ESP8266 WiFi expansion board and an SPI/I2C serial port. The IO ports have micro:bit GVS extensions so that additional components (such as LEDs and servos) can be connected to them. The board has a built-in buzzer module and RTC clock, which allows accurate timing without the need for a power supply.
Specification:
Specification:
- Power supply DC: USB 5 V
- Maximum current: 800 mA
- Interface: I2C / SPI
- Direct connection: OLED, BME280 and IIC
- I2C interface ports: 19, 20
- SPI interface ports: 14, 15
- WiFi module: ESP 8266
- RTC module: DS1307 RTC
- Battery type: CR1220
- Buzzer: passive
- PCB thickness: 1.5 mm
- Hole diameter: 2.4 mm
- Dimensions: 71 x 63 x 23 mm
- Weight: 30 g
