Micro gearmotor 150:1 175RPM - SparkFun ROB-12205

Brand: Sparkfun
Product Code: AN-21741
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
27.60€
Ex Tax: 22.81€

Qty

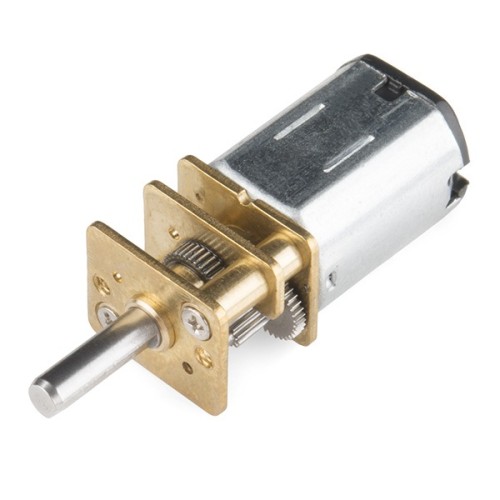

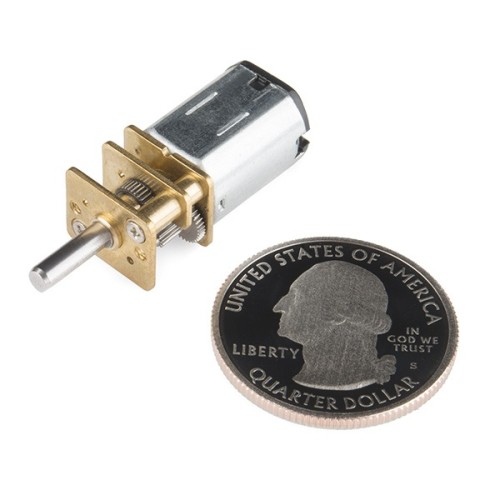

A small DC motor powered with a voltage of 12 V. Equipped with 150:1 gear. The maximum speed of the presented engine is 175 rpm, the stall torque is 45 ounces/inch (0.5 kg/cm). The product has a single-sided D-shaped shaft with a width of 3 mm. Due to its compact dimensions, it can be used in projects in the field of robotics and precision electronics.

Specification:
  • Developer: SparkFun
  • Model designation: SparkFun ROB-12205
  • Motor type: micro DC motor
  • Supply voltage: 6 V to 12 V
  • Gear ratio: 150:1
  • Stall Torque: 45 oz/inch (0.5 kg/cm)
  • Maximum speed: 175 rpm/min
  • Shaft type: truncated, D shaped
  • Shaft width: 3 mm
  • Shaft height: 10 mm
  • Gear material: metal
  • Body material: metal
  • Body dimensions (without shaft): 25 x 12 x 10 mm
