Membrane keypad - 3 colored buttons - self-adhesive

Product Code: AN-16995
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
2.60€
Ex Tax: 2.15€

Qty

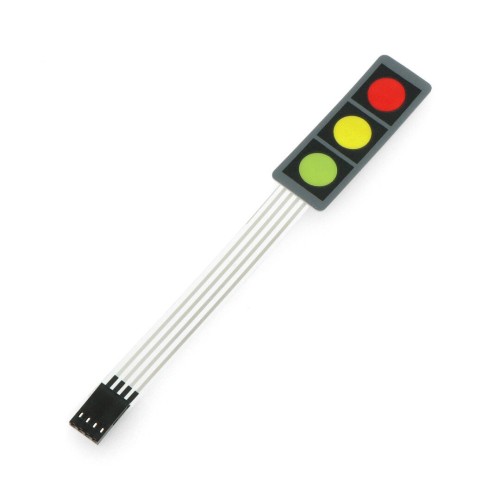

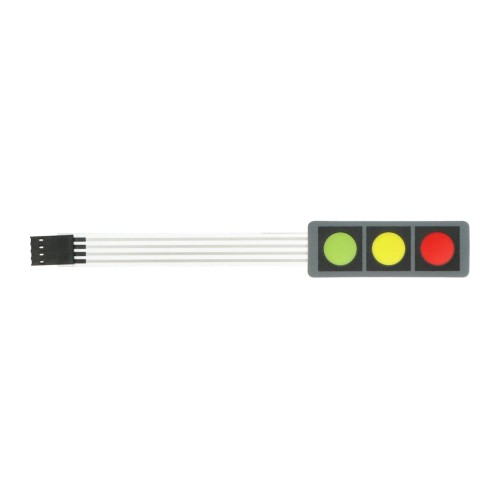

Equipped with 3 color membrane keypad buttons. Simple input device allowing to control projects e.g. based on Arduino or STM32. Keyboard leads are made in the form of 90 mm tape with a 4-pin female connector. On the back of the keyboard, there is self-adhesive tape, which allows for a trouble-free installation of the keyboard on any surface.

Specification:

  • Number of buttons: 3
  • Type of connector: 1x4 pin - female raster 2.54 mm
  • Dimensions: 57 x 20 x 0.8 mm
  • Belt length: 90 mm
