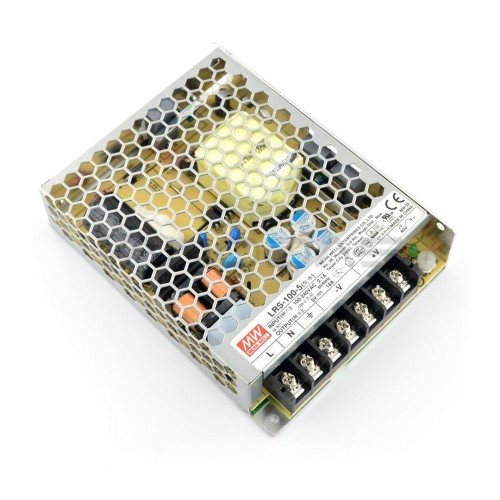

Mean Well LRS-100-5 power supply - 5V/18A/90W

Brand: MEAN WELL
Product Code: AN-06023
Availability: Temporarily Out Of Stock
33.20€
Ex Tax: 27.44€
Power supply Mean Well power 90 W. Input voltage from 85 V to 264 V AC and 125 to 373 V DC. The output voltage is 5 V. Output current up to 18 A.

Specification:

  • Power supply:
    • AC power from 85 V to 264 V
    • DC 125 V to 373 V
  • Type: switched-mode
  • Output voltage: 5 V DC
  • Output current: 18 A
  • Power: 90 W

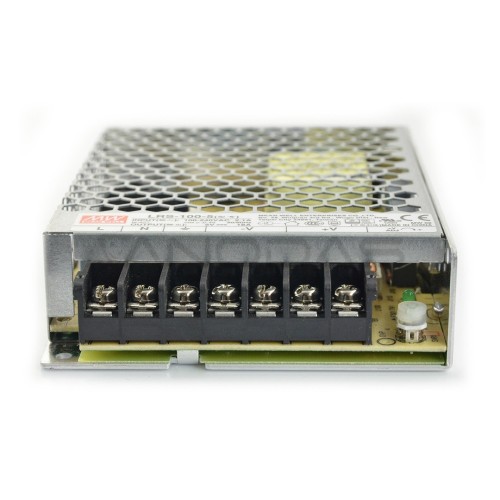

  • Inputs in the form of the terminal strips
  • Operating temperature: -30 °C to 70 °C
  • Dimensions: 129 x 97 x 30 mm
  • Weight: 340 g
