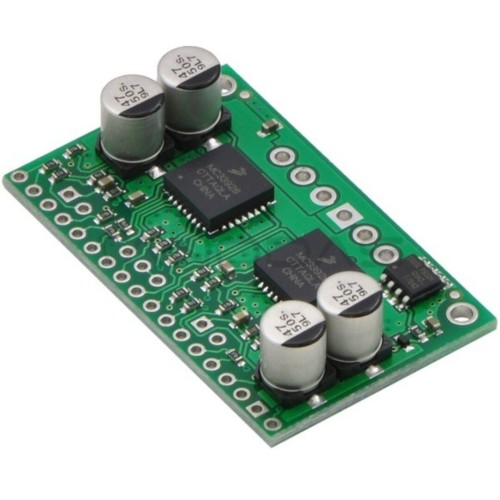

MC33926, two-channel 28V/2.5A motor controller, Pololu 1213

The MC33926-based module allows you to control two motors with a supply voltage of up to 28 V and a continuous current draw of up to 3 A (with adequate cooling). The controller can also withstand current peaks of up to 5 A for several seconds. The speed can be controlled with a PWM signal up to 20 kHz. An analog FB output allows the current consumption of motors with a sensitivity of 0.525 V/A to be measured. The module also has protection against the excessive current flow and overheating.

Specification:

• Motor supply voltage: 5 V - 28 V
• The voltage of the logical signals: 2.5 V - 5.5 V
• Continuous output current per channel: 2,5 A
• Maximum instantaneous current per channel: 5 A
• PWM frequency: up to 20 kHz
• Protection against incorrect power supply

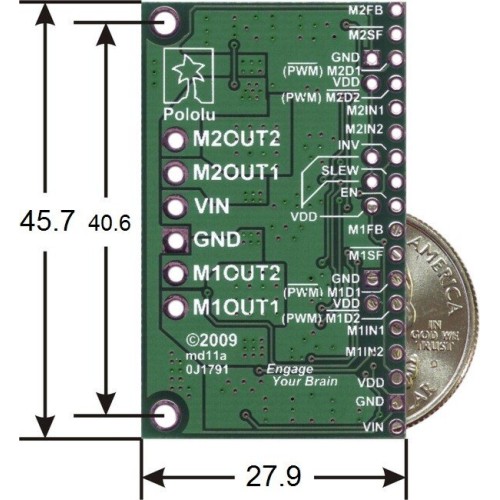

• Dimensions: 45.7 x 27.9 mm
• Weight: 8 g


Useful links:
Manufacturer website
