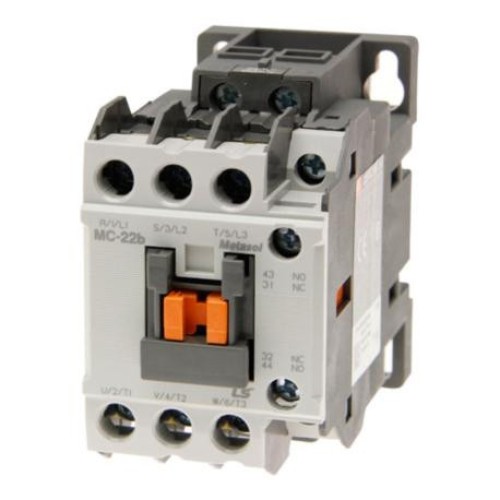

MC-22B contactor 11kW AC230V AB
Brand: LS Electric
Product Code: MX-S2010-200-0022
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-02
Product Code: MX-S2010-200-0022
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-02
Ex Tax: 33.88€
LS Metasol contactor 22A 11kW AC230V NO+NC
Features:
- Compact design that saves space
- DIN rail installation
- Thermal relays are installed under the contactor or separately
- Easy installation with motor switches using adapters
- Touch protection
- A wide range of accessories
- World-class performance according to IEC and UL standards
Type: MC-22b
Current: 22A
Coil: 230V AC
Number of fields: 3
Nominal operating voltage Ue: 690V
Nominal working voltage Ui: 690V
Operating frequency: 50/60Hz
Nominal impulse voltage Uimp: 6kV
Number of work cycles/hour: 1800
Mechanical strength: 15mil.
Electrical strength: 2.5 mil.
Current and power:
- AC-1 thermal current: 40A
- AC-3:
- 200/240V: 5.5kW. 22A
- 380/440V: 11kW. 22A
- 500/550V: 15kW. 20A
- 690V: 15kW. 18A
- UL standard value (50/60 Hz):
- Continuous current: 40A
- Phase 1: 110 ~ 120 V: 2 HP
- 220~240V: 3 HP
- 3 Phase: 200 ~ 208 V: 7.5 HP
- 220~240V: 10HP
- 440~480V: 15HP
- 550 ~ 600 V: 20 HP
- NEMA dimensions: 1
Dimensions:
- AC - weight: 0.34 kg. dimensions: 45x73.5x86
- DC - weight: 0.51 kg. dimensions: 45x73.5x117.7
Auxiliary contacts (standard): 1a1b
Additional: Half: UA-1. front: AU-2. AU-4
These contactors correspond to the GMC contactors of the previous series in terms of the solutions used, and also use the best features of the Susol series contactors, such as a modern appearance. reliability and durability.
In addition, we can install:
- front mounted auxiliary contacts UA-2 or UA-4
- auxiliary contacts mounted on the side of the UA-1
In addition, the offer includes many additional accessories:
- MT thermal relays (available from 0.1A to 800A, depending on contactor size)
- US coil surge protection modules
- AP terminal covers
- UR and AR mechanical locks
- connecting bridges for UW reversing systems
- AD time elements
- adapters for mounting with motor switches
Among the accessories, we would like to draw attention to the capacitor battery activation module. The theory says. that in order to reduce current surges, specially designed contactors should be used to connect the capacitors. occurring when capacitive loads are switched on. Most manufacturers offer special contactors for this purpose, often much more expensive and difficult to obtain. LS Industrial Systems has a very simple solution to this problem. All contactors are designed to operate in coordination 2, which means. that in case of activation. this camera will not be damaged. you may just need to check its parameters. Means. that contactors are usually already too large. and only an additional module with discharge resistors is needed to turn on the capacitor bank
- AC-9 (for batteries up to 33.3 kVar at 440 V voltage)
- AC-50 (for batteries up to 62 kVar at 440 V voltage)
Maximum working power:
- 220 ~ 240 V: 10 kvar
- 400 ~ 440 V: 18 kvar
- 500 ~ 550 V: 26 kvar
- Nominal current: 26A
- capacitor: AC-9
Specifications:
- Control voltage: 230V
- Control voltage type: AC
- Contact configuration: NONC
- Rated AC contact current: 22A
- Rated AC contact voltage: 400V AC
