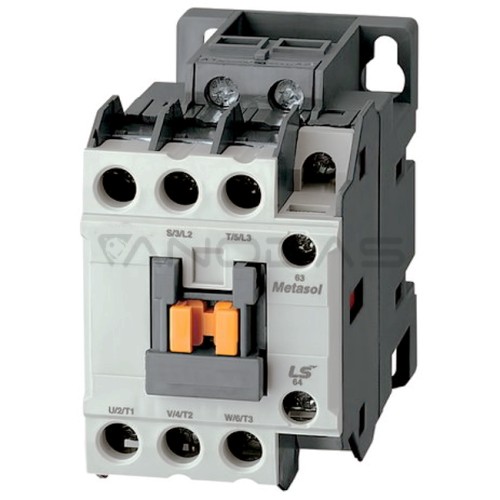

MC-18B contactor 7.5kW AC230V AB

- Compact design for space saving
- DIN rail mounting
- Thermal relays mounted under the contactor or separately
- Easy to install with motor switches using adapters
- Touch protection
- Wide range of accessories
- World-class performance with IEC and UL standards

Type: MC-18b
Current: 18A
Coil: 230V AC
Number of fields: 3

Rated operating voltage Ue: 690V
Rated operating voltage Ui: 690V
Operating frequency: 50/60Hz
Rated impulse voltage Uimp: 6kV
Number of work cycles/hour: 1800
Mechanical strength: 15mil.
Electrical strength: 2.5mil.

Current and power:

AC-1 thermal current: 32A
AC-3:
200/240V: 4.5kW. 18A
380/440V: 7.5kW. 18A
500/550V: 7.5kW. 13A
690V: 7.5kW. 9A
Value for UL standard (50/60Hz):
Continuous current: 40A
1-phase: 110~120V: 1HP
220~240V: 3HP
3-phase: 200~208V: 5HP
220~240V: 7.5HP
440~480V: 10HP
550~600V: 15HP
NEMA Dimension: 0

Dimensions:

AC - weight: 0.34 kg. dimensions: 45x73.5x86
DC - weight: 0.51kg. dimensions: 45x73.5x117.7

Auxiliary contacts (standard): 1a1b
Additional: side: UA-1. front: AU-2. AU-4

These contactors refer to the previous series of GMC contactors in terms of the solutions used and also use the best features of Susol series contactors, such as a modern appearance. reliability and durability.

Additionally, we can install:
- front-mounted auxiliary contacts UA-2 or UA-4
- auxiliary contacts mounted on the side of UA-1
In addition, the offer includes a whole range of additional accessories:
- MT thermal relays (available in the range from 0.1A to 800A depending on the size of the contactor)
- surge protection modules for US coils
- AP terminal covers
- UR and AR mechanical locks
- connecting bridges for UW reversing systems
- AD time elements
- adapters for installation with motor switches

-------------------------------------------------- -------------

Among the accessories, we would like to draw attention to the module for switching on the capacitor bank. The theory says. that specially designed contactors should be used to connect capacitors in order to reduce current surges. occurring when switching on capacitive loads. Most manufacturers offer special contactors for this purpose, often much more expensive and difficult to obtain. LS Industrial Systems has a very simple solution to this problem. All contactors are designed to operate according to Coordination 2, which means. that in case of activation. this camera will not be damaged. it may only require checking its parameters. Means. that contactors are generally already oversized. and to switch on the capacitor bank, only an additional module with discharge resistors is needed

- AC-9 (for batteries up to 33.3kVar at 440V)

- AC-50 (for batteries up to 62kVar at 440V)

Maximum working power:
220~240V: 8.5kvar
400~440V: 16.7kvar
500~550V: 24kvar
Rated current: 24A
capacitor: AC-9
