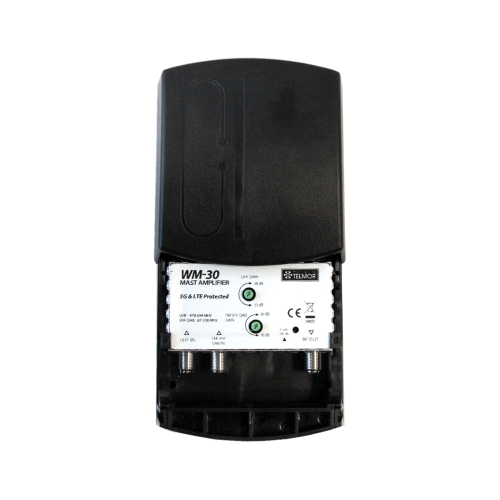

Mast Amplifier WM-30 FM/VHF+UHF DVB-T2 5G PROTECTED Telkom Telmor
Brand: Telkom Telmor
Product Code: ANT0728
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2024-11-13
Product Code: ANT0728
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2024-11-13
Ex Tax: 28.10€
----------
Characteristics
----------
Mast amplifiers dedicated to work with digital terrestrial TV signals - DVB-T2
Dedicated inputs for bands (depending on version)
5G Protected technology
Independent gain control for input signals
Remote powered via output (OUT)
Possibility of outdoor installation - the set includes a splash-proof housing with a clamp for the mast
----------
Technical data
----------
Working band: FM + VHF/ UHF
Number of inputs: 2
Operating frequency range: 87-240 MHz and 470-694 MHz
Gain: 38 dB and 30 dB
Gain control in UHF: -15 dB and -20 dB
Maximum output level: 96 dBuV
Power supply: 5-24V DC
Input/output impedance: 75 ohms / 75 ohms
I/O connector type: F-socket/F-socket
Dimensions: 108x125x45mm
Net weight with mast housing: 0.2 kg
The new series of WM 10/20/30 amplifiers will allow you to connect terrestrial antenna(s) and amplify the signals coming from them. The gain is up to 38dB (depending on the band and type) and is regulated by potentiometers.
Such amplified signal is ideal for further distribution in a single-family house or a small multi-family building. It will also work perfectly if you want to send the signal from the terrestrial antenna over a longer distance via coaxial cable.
WM – 30 - two inputs, the first for the UHF band in the range of 470-694MHz, gain 23..38dB, the second for the FM/VHF/DAB band 87-240MHz, gain 10..30dB
The set includes a splash-proof housing and a band to mount the device on the mast.
In order to power the device, a TT-PS SAT power supply crossover with an amplifier should be used, which allows it to be connected on a coaxial cable inside the building.
Characteristics
----------
Mast amplifiers dedicated to work with digital terrestrial TV signals - DVB-T2
Dedicated inputs for bands (depending on version)
5G Protected technology
Independent gain control for input signals
Remote powered via output (OUT)
Possibility of outdoor installation - the set includes a splash-proof housing with a clamp for the mast
----------
Technical data
----------
Working band: FM + VHF/ UHF
Number of inputs: 2
Operating frequency range: 87-240 MHz and 470-694 MHz
Gain: 38 dB and 30 dB
Gain control in UHF: -15 dB and -20 dB
Maximum output level: 96 dBuV
Power supply: 5-24V DC
Input/output impedance: 75 ohms / 75 ohms
I/O connector type: F-socket/F-socket
Dimensions: 108x125x45mm
Net weight with mast housing: 0.2 kg
The new series of WM 10/20/30 amplifiers will allow you to connect terrestrial antenna(s) and amplify the signals coming from them. The gain is up to 38dB (depending on the band and type) and is regulated by potentiometers.
Such amplified signal is ideal for further distribution in a single-family house or a small multi-family building. It will also work perfectly if you want to send the signal from the terrestrial antenna over a longer distance via coaxial cable.
WM – 30 - two inputs, the first for the UHF band in the range of 470-694MHz, gain 23..38dB, the second for the FM/VHF/DAB band 87-240MHz, gain 10..30dB
The set includes a splash-proof housing and a band to mount the device on the mast.
In order to power the device, a TT-PS SAT power supply crossover with an amplifier should be used, which allows it to be connected on a coaxial cable inside the building.
