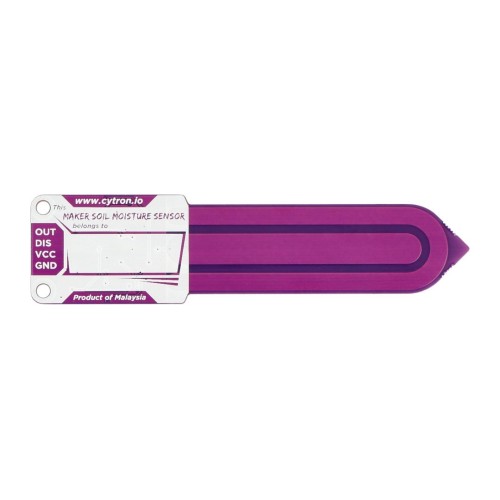

Maker Soil Moisture - capacitive soil moisture sensor

Brand: Cytron
Product Code: AN-21207
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
8.50€
Ex Tax: 7.02€

Qty

Cytron Maker Soil Moisture sensor is a sensor that can measure soil water content and connect with various microcontrollers. The sensor has an analog output in the form of a Grove connector, it can be connected to a microcontroller with an analog input. The output of the capacitive soil moisture sensor is a voltage signal, the lower the voltage, the higher the moisture content. The corrosion-resistant double-sided probe can be driven into the soil to a depth of 60 mm. On the sensor board, there are also LEDs informing about the humidity level: dry/wet, thanks to which it can work as an independent device without a microcontroller, it is enough to supply a power supply from 2.5 V to 7 V.

Specification:
  • Supply voltage: 2.5 V to 7 V
  • Output voltage: 1 V to 5.2 V
  • Wake-up voltage DIS pin: min. 0.8 V

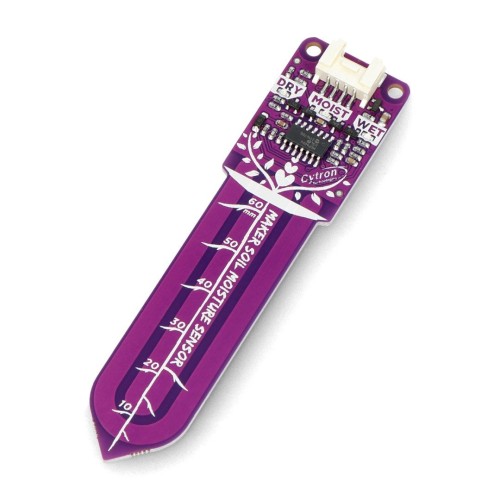

  • LED designations, supply voltage 3.3 V:
    • blue (WET): 1.4 V to 1.8 V
    • green (MOIST): 1.8 V to 2.1 V
    • red (DRY): from 2.1 to 2.3 V
  • LED designations, 5 V supply voltage:
    • blue (WET): 2.3 V to 2.7 V
    • green (MOIST): from 2.7 V to 3.1 V
    • red (DRY): 3.1 V to 3.6 V
  • Pad consumption:
    • VCC 3.3 V: 5.4 mA to 5.6 mA
    • VCC 5 V: 3.6 mA to 3.7 mA
  • Current consumption (after switching off):
    • VCC 3.3 V: 80 ÎĽA to 140 ÎĽA
    • VCC 5 V: 140 ÎĽA to 180 ÎĽA

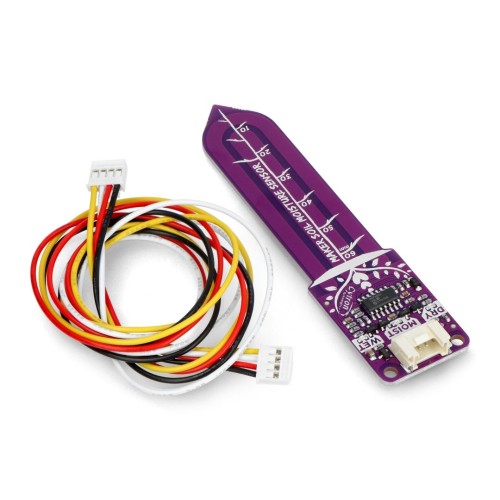

  • Connector: Grove
  • Maximum depth: 60 mA
  • Double-sided capacitive probe, corrosion-resistant
  • Dimensions: 100 x 25 mm
