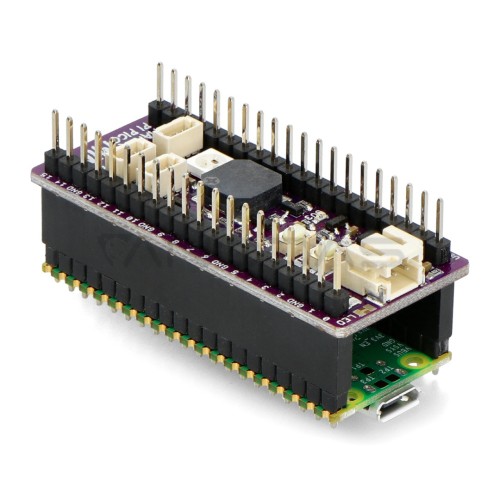

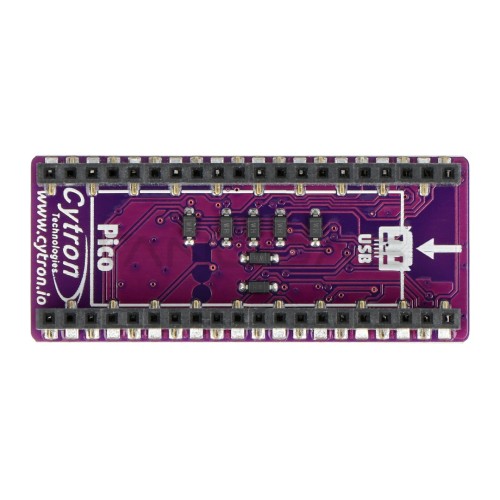

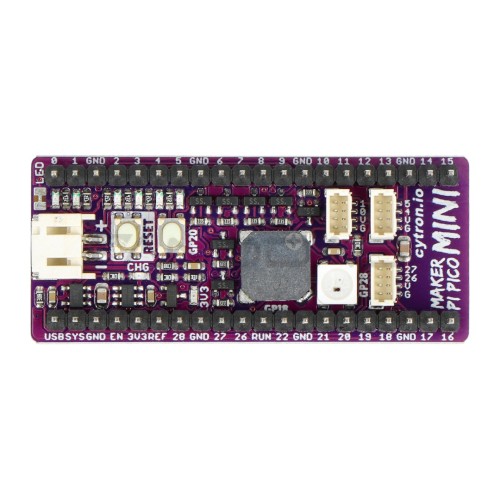

Maker Pi Pico Mini - baseboard for Raspberry Pi Pico

Brand: Cytron
Product Code: AN-22112
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-11
15.70€
Ex Tax: 12.98€

Qty

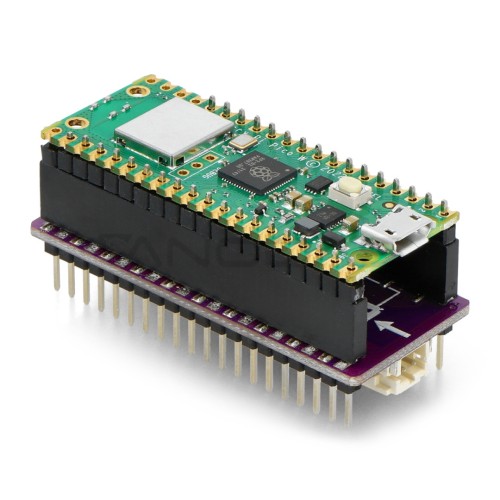

The base board is designed for projects with Raspberry Pi Pico or Raspberry Pi Pico W. It inherits most of the useful functions that are present in its larger versions, such as GPIO status LEDs, RGB LED WS2812B, buzzer and two buttons - reset and programmable button. In addition, Maker Pi Pico Mini can also be powered by one Li-Pol cell and has protection circuits against overcharging or discharging. Due to the small size of the board, the Grove connector was abandoned and replaced with three Maker ports. They are compatible with Qwiic, STEMMA QT and Grove plugs.

Main features:
  • Compatibility with Raspberry Pi Pico / Pi Pico W
  • Possibility of powering through a Li-Pol cell
  • 6 GPIO status LEDs
  • WS2812B RGB LED
  • Piezoelectric buzzer for playing sounds or melodies
  • RESET button
  • User programmable button
  • Three Maker ports compatible with Qwiic, STEMMA QT and Grove
Specification:
  • Manufacturer: Cytron
  • Power:
    • 4.5 V - supplied via the USB connector
    • 3.3 V - supplied through a Li-Pol cell
  • Dimensions: 53.82 x 23.12 mm

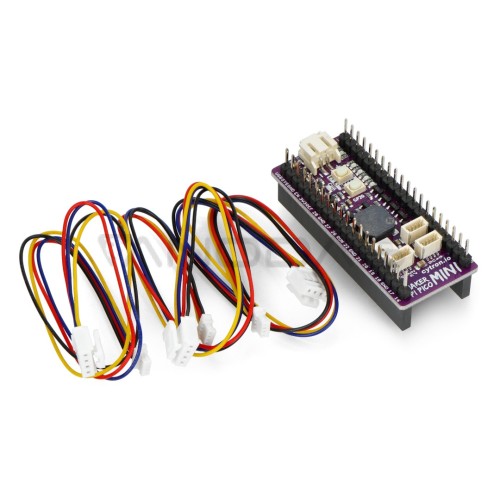

Set includes:
  • Maker Pi Pico Mini
  • 3 x JST-SH cable
