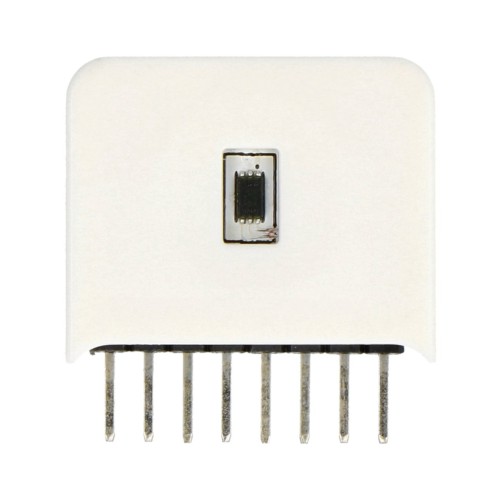

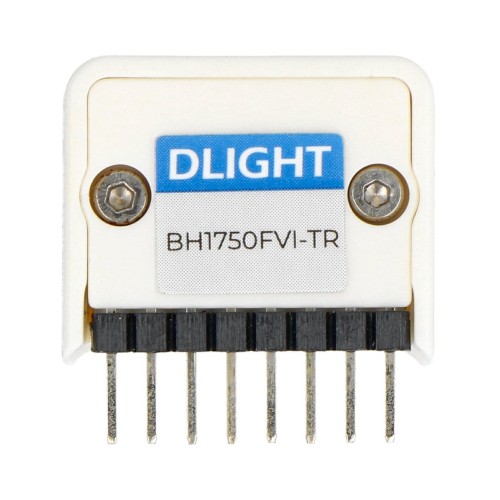

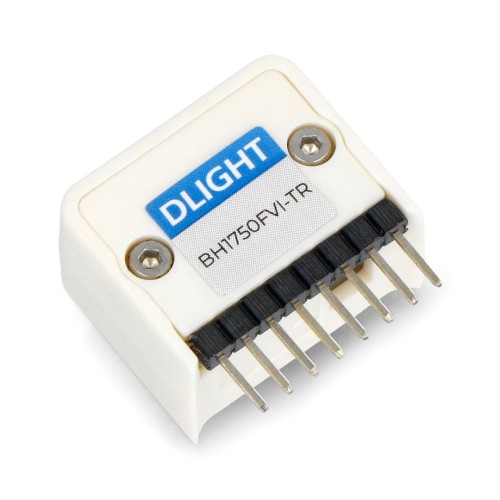

M5StickC HAT - DLIGHT Ambient Light Sensor - BH1750FVI-TR

Brand: M5Stack
Product Code: AN-20881
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
9.30€
Ex Tax: 7.69€

Qty

Digital ambient light sensor in the form of a HAT overlay for the M5StickC/M5StickC Plus development module. The sensor manufactured by the M5Stack company was equipped with the BH1750FVI-TR system. It measures the light intensity in the range from 1 lux to 65535 lux and can be used to work in various lighting conditions, also in a room with incandescent lighting, where the main source of light is a fluorescent bulb, halogen, white LED diode or standard sunlight.

Specification:
  • Type: Ambient Light Intensity Sensor
  • Built-in chip: BH1750FVI-TR
  • Module type: HAT overlay
  • Measurement range: from 1 lux to 65535 lux
  • Typical peak wavelength: 560 nm
  • Communication interface: I2C bus
  • Interface address: 0x23
  • Average current consumption: 0.3 mA
  • ADC converter: 16-bit
  • Module dimensions: 25 x 24 x 14 mm
  • Module weight: 4.8 g
