M5Stack Station - ESP32 IoT developer kit - battery version - M5Stack K124-B

Brand: M5Stack
Product Code: AN-21946
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-15

97.20€
Ex Tax: 80.33€

Qty

Add to Wish List

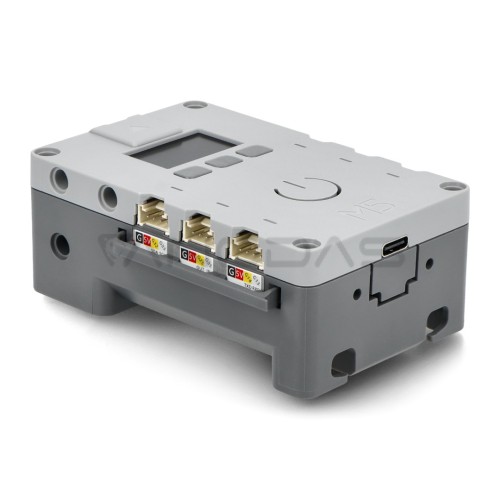

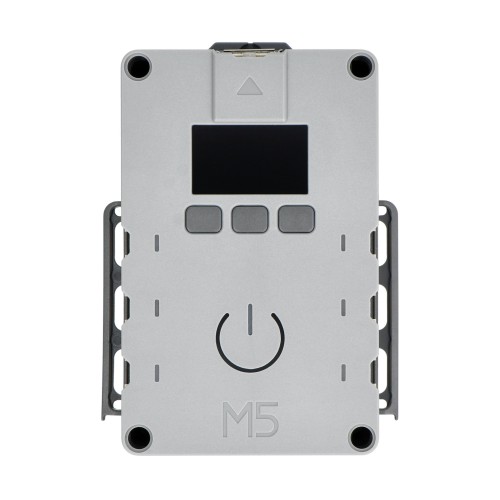

The M5Stack Station is a multifunctional IoT development kit equipped with the ESP32-D0WDQ6-V3 chip, supports WiFi wireless communication, and has a built-in 2.4 GHz 3D antenna. In the front part of the module, there is a 1.14'' display, four buttons - one power switch and three programmable utility buttons and as many as seven programmable SK6812 LEDs. In addition, the M5Stack Station has been equipped with a number of functional systems - a 6-axis IMU MPU6886, an integrated DC/DC voltage converter of the SCT12A0DHKR type, as well as the INA3221 system that allows you to control the voltage and current consumption. Among the pins on the board of the module you will find six Grove connectors (I2C + I/0 + UART), one USB type A port and one USB type C port. M5Stack Station is a powerful executive module that can be used to control industrial devices, intelligent buildings, multi-channel data acquisition nodes and widely understood prototype applications.

Specification:

Built-in chip: ESP32-D0WDQ6-V3

Number of cores: dual-core
Clock frequency: 240 MHz
SRAM memory: 520 KB
600 DMIPS and wireless WiFi communication

Flash memory: 16 MB
Power:

via USB type C connector: 5 V / 1 A
via battery: 18650 x2 (parallel connected)

Interfaces: 1x USB type C, 6x Grove (I2C + I/0 + UART), 1x USB type A
LEDs: 7x SK6812
Buttons: 1x power button, 3x function button
Display: 1.14'' diagonal, resolution 240x135px, ST7789V2 control system
Built-in IMU sensor: MPU6686
Built-in RTC: BM8563
Built-in PMU: AXP192
Built-in voltage/current sensor: INA3221 + INA199
USB chip: CH9102F
DC/DC voltage converter: SCT12A0DHKR
Antenna: 2.4 GHz 3D
Operating temperature range: 0 °C to 60 °C
Fixing screws at the base: M2 x 8 mm hex head screw
Material: ABS + PC
Module dimensions: 92 x 64.5 x 35 mm
Weight: 79.5 g

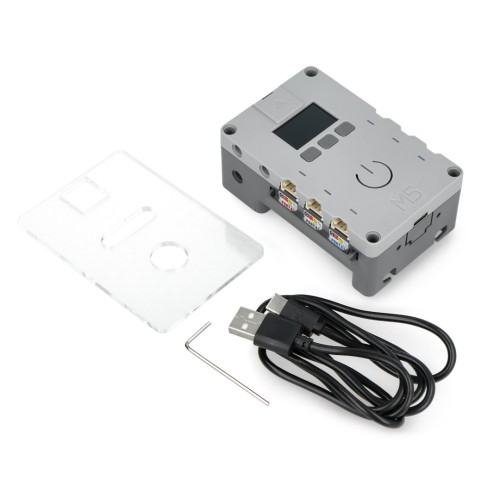

Set includes:

M5Stack Station - ESP32 IoT development kit - battery version
Connection cable with USB type C connector, 100 cm long
Protective plexiglass
Allen key
