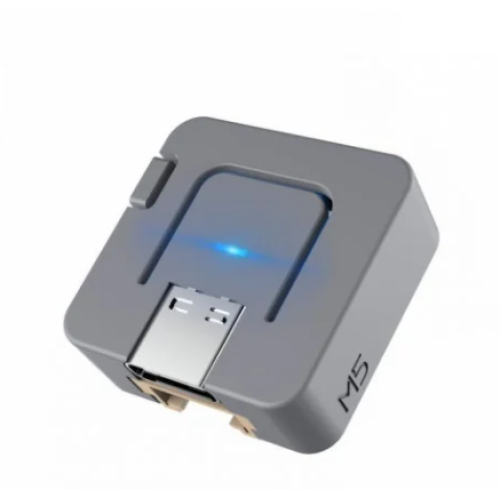

M5Atom Lite - developer module with programmable button - ESP32

Miniature main module with RGB LED and button. The device's capabilities can be easily expanded with additional ATOM series modules or Grove compatible sensors. The module is based on the ESP32-PICO chip, which also enables communication using Wi-Fi and Bluetooth. For power supply and programming the device uses the USB C port located on the housing.

Main product features

• Module based on ESP32-PICO
• 4 MB integrated SPI Flash memory
• Compatible with Grove sensors
• Wi-Fi and Bluetooth communication
• Programmable button
• Built-in infrared diode
• GPIO connector for connecting additional ATOM modules
• Programmable with Arduino IDE, UIFlow and MicroPython

What is needed to work with M5Atom Lite?

• To work with the module you will need a USB cable, which will be used to program and power our device. To power the device we can also use ATOM TailBat extensions, which act as a kind of powerbank. For proper communication between the module and the computer you will also need CP210X driver, whose installation was described by the manufacturer. The manufacturer also provides Easy Loader and M5Burner programs using firmware upload to our device.

Application of the module

• Thanks to its miniature size, the device can be successfully used in intelligent home systems and intelligent toys and robots. The process of connecting sensors and extensions to the device is very simple. Grove and GPIO connectors on the back of the device are used for this purpose. Thanks to the use of Grove connectors by the manufacturer we can also use sensors from Grove system. Working with the device does not require from us knowledge of coding, all functions of the system can be programmed using UIFlow, which is an original, graphical programming language created for M5Stack devices.

Specification:

• Controller: ESP32-PICO,
• Flash memory: 4
• Power supply: 5 V / 500 mA
• Connectors: GPIO, USB C, Grove
• Operating temperature: 0°C to 40°C
• Dimensions: 24 x 24 x 10 mm
• Weight: 3 g
