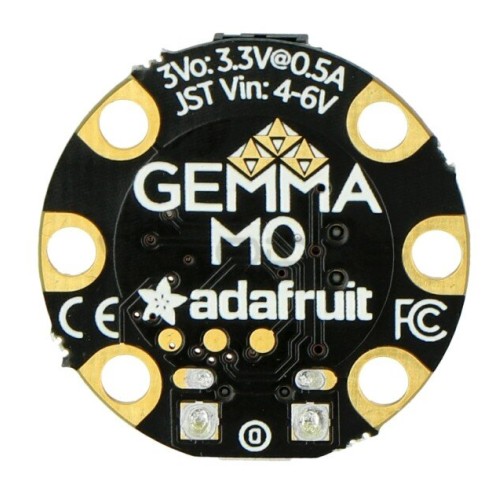

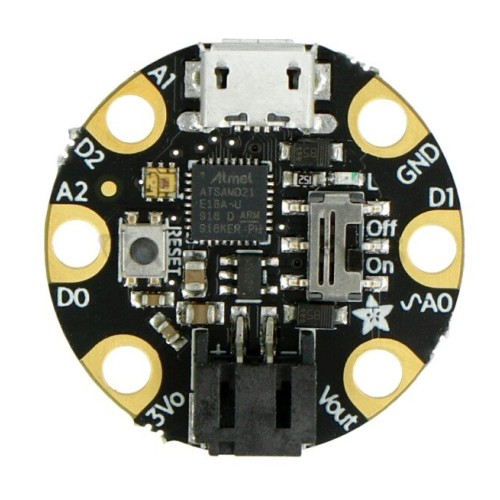

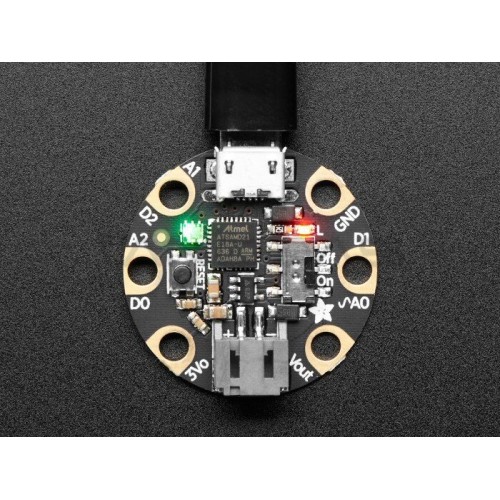

M0 GEMMA, a miniature platform with a 3.3 V microcontroller ATSAMD21E18, Adafruit 3501

Miniature round module with microcontroller ATSAMD21E18, equipped with 256 KB of Flash memory, 3 digital pins, analog input, and 2 channels of PWM. On board is a microUSB connector, thanks to which the system can be programmed via the Arduino IDE using the cable. After only a few minor changes, the plate behaves like a standard Arduino. The board also supports programming in CircuitPython, which is the program that connects Python language with microcontrollers. When connecting to a computer, an extra drive with the main.py file will appear that can be changed in any text editor.

Specification:

• The ATSAMD21E18 microcontroller:
• Flash memory: 256 KB
• SRAM: 32 KB
• Clock Frequency: 48 MHz
• Support for native USB
• The possibility of programming via the Arduino IDE or CircuitPython
• Built-in RGB LED DotStar
• Leads adjusted for crocodile connectors
• 12-bit analog input
• The programs are compatible with the previous version of Gemma
• 2 PWM high-speed outputs
• All three pins can be used as touch sensors
• Possibility to use RGB LEDs NeoPixels and DotStars on every pin with enough memory for more than 8000 pieces
• Native hardware support for I2C and serial transmission
• Reset button and power switch
• JST battery connector, 2-pin, the pitch of 2.0 mm
• Diameter of the board: 28mm
• Weight: 2.1 g


Useful links:
Manufacturer website
Manual
