Lumiax MPPT MT3010BT 30A charge controller

Brand: Lumiax
Product Code: R0124
Availability: 6-10 business days
Planuojama gavimo data po uĹľsakymo: 2025-05-13
122.50€
Ex Tax: 101.24€

Qty

The MT series MPPT controller is based on the advanced Maximum Power Point Tracking (MPPT) technology and is designed for photovoltaic (PV) systems. The Bluetooth interface ensures constant data monitoring in the mobile application.

Main features:

  • LCD display, easy reading of work data
  • Real-time energy statistics function
  • Automatic 12 / 24 V detection
  • Flexible battery selection: Liquid, Gel, AGM and Lithium
  • Extended service life thanks to a remote temperature sensor
  • The controller is protected against overheating by a built-in power limiting function
  • It also has a four-stage charging process: MPPT, boost, equalize, float
  • Double automatic protection against too high charging power and too high current
  • Multiple receiver modes: Always on, Dusk to Dawn, Evening and manual mode
  • IoT wireless communication or Bluetooth communication
  • Mobile application for Bluetooth communication
  • The controller can be remotely connected to IoT / GPRS thanks to the IoT remote communication function
  • Monthly job data can be counted and displayed graphically
  • Modbus protocol with RJ11 based on RS-485 to maximize communication possibilities
  • Fully automatic electrical protection function

Specification:

  • Model: MT3010BT
  • System voltage: 12 V / 24 V
  • Charging current: 30 A
  • MPPT charging voltage: < 14.5 / 29.0 V (at 25 °C)
  • Boost voltage: 14.5 / 29.0 V (at 25 °C)
  • Equalization voltage: 14.8 / 29.6 (at 25 °C) (smooth)
  • Float voltage: 13.7 / 27.45 (at 25 °C)
  • Disconnection of receivers at low voltage: 10.8 ~ 11.8 V / 21.6 ~ 23.6 V SOC1 ~ 5
  • Reconnect Voltage: 11.6 ~ 12.8 V / 23.2 ~ 25.6 V
  • Overcharge protection: 15.5 / 31.0 V
  • Battery connector voltage: 35 V
  • Temperature compression: -4.17 mV/K per cell (Boost, Equalization), -3.33 mV/K per cell (Float)
  • Battery type: Liquid, Gel, AGM, Lithium Ion
  • Communication: BLE 4.2, RS485 (RJ11 interface), IoT
  • The voltage of the PV junction: 100 V
  • Input power: 390 / 780 W
  • Dusk / dawn detection voltage: 8.0 / 16.0 V
  • MPPT Tracking Range: ~ Voc 0.9
  • Output current: 30 A
  • USB interface: -
  • Standard, D2D, Street lighting (2 -9h) operating mode
  • Tracking efficiency: > 99.9%
  • Charging conversion: 98%

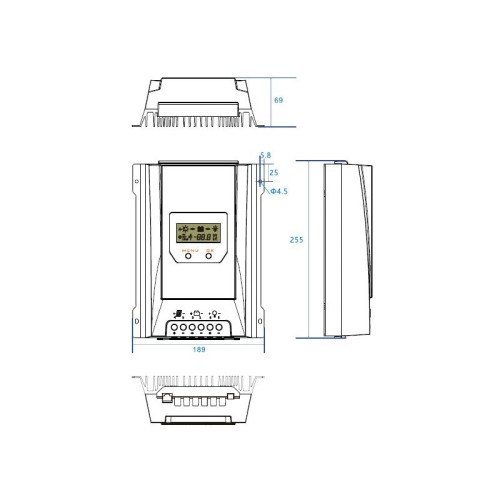

  • Dimension: 189 x 255 x 69 mm
  • Weight: 1 kg
  • Own power consumption: 7 mA
  • Ambient temperature: -20 ~ 50 °C
  • Storage temperature: -25 ~ 80 °C
  • Ambient humidity: 0 ~ 100% RH
  • Protection degree: IP32
