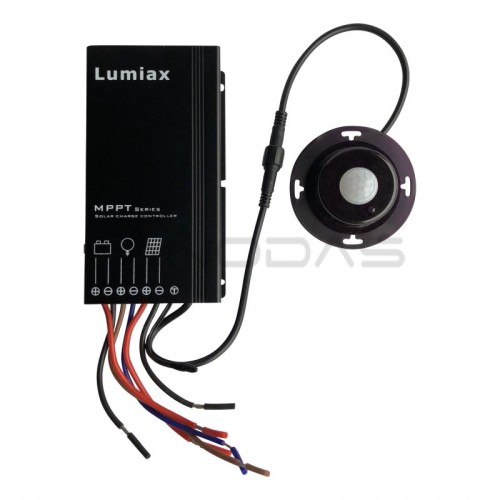

Lumiax MPPT 2075-DCR 20A controller

The intelligent MPPT-DCR regulator is programmable, and its advantage is particularly visible in the mode of solar LED street lamps. It has the function of a constant current driver. The charging efficiency is about 20% higher than in traditional PWM regulators, which can significantly reduce the costs of the entire system.

Main features:

• Innovative Maximum Power Point Tracking (MPPT) technology, tracking efficiency > 99%
• Fully digital technology, high charging conversion efficiency up to 96%, discharge conversion efficiency up to 95.5%
• It can output an adjustable DC current. Precision: 50 mA, min. power: 0.3 W N
• Infrared motion sensor
• Programmable 5-step timer and dimming, 0-100% dimming
• Possibility to set the sensor delay in the range of 10-150s
• Parameters and operating status can be read
• The auto dimmer can be set when the battery is low voltage
• Dimming initiation voltage and dimming percentage can be set
• You can automatically set the day/night threshold
• Choice of batteries - gel, liquid, AGM
• 4-stage charging: MPPT, boost, equalize, float
• A remote device with an LCD display for making settings
• IP67, rugged aluminum housing
• Fully automatic electronic security function


Specification:

• System voltage: 12 V / 24 V automatic detection
• Charging current: 20 A
• MPPT charging voltage: < 14.5 / 29 V at 25 ℃
• Boost: 1 ~ 20% (Programmable）
• Equalization: 14.8 / 29.6 V / 25 ℃ (Smooth)
• Float: 13.7 / 27.4 V at 25 ℃
• Disconnection of loads at low voltage: 10.8 ~ 11.8 V / 21.6 ~ 23.6 V (Programmable）
• Battery connector voltage: 35 V
• Temperature compensation: -4.17 mV/K per cell (Boost, Equalization), -3.33 mV/K per cell (Float)
• Battery type: Liquid, Gel, AGM (Programmable）
• PV module connector voltage: 55 V
• Input power: 260 W / 520 W
• Self-consumption: 6 mA
• Dimensions: 85.8 x 145 x 42.5 mm
• Weight: 720 g
• Ambient temperature: -35 ~ 60 ℃
• Ambient humidity: 0 ~ 100% RH
• Protection degree: IP67
• Altitude: 4000 m
