Lock nut M6 6x25x1.2 with collar - 3-hole

Product Code: ABC-16363
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-05-13
1.30€
Ex Tax: 1.07€

Qty

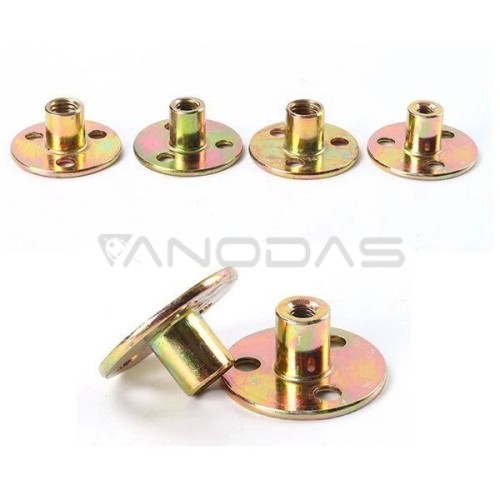

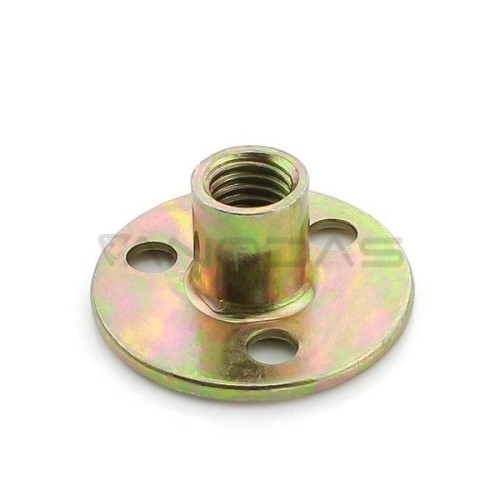

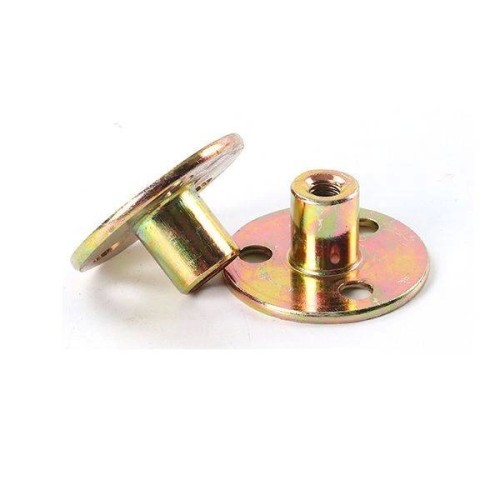

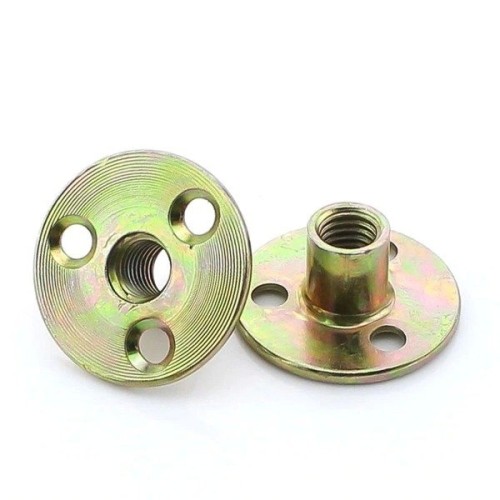

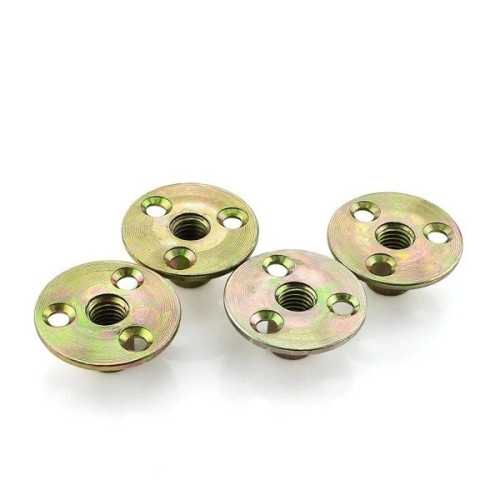

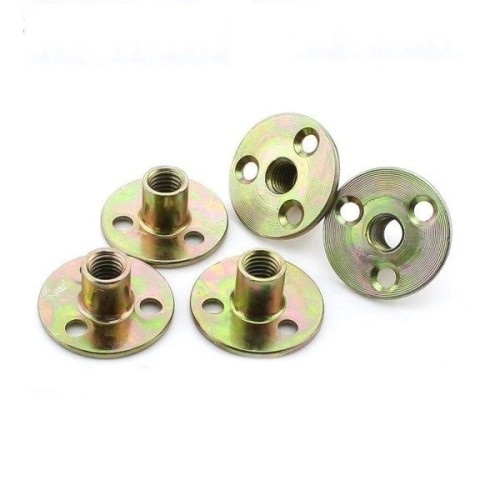

Lock nut M6 6x25x1.2 with collar - 3-hole worowa

M6 6x25x1.2 locking nut with a collar and 3 holes is used for various types of fastenings. Secures the fastened element. The internal hole is threaded and suitable for trapezoidal screws and shafts with M6 thread.

Technical data
  • Diameter - M6 - 6 mm
  • Metric thread: triangular
  • Hole diameter in the collar: 5.5 mm
  • Outer diameter of threaded sleeve: 7.5 mm
  • Thread sleeve length: 8 mm
  • Total height of the nut: 9 mm
  • Collar diameter: 25 mm
  • Collar thickness: 1.2 mm
  • Diameter of three mounting holes: 3.5 mm
  • Weight: 4 g
Included
  • M6 lock nut with collar - 3-hole - 1 piece
