LLTHR 30 P5 SKF rail

Brand: SKF
Product Code: MX-LLTHR-30-P5
Availability: Temporarily Out Of Stock
298.10€
Ex Tax: 246.36€

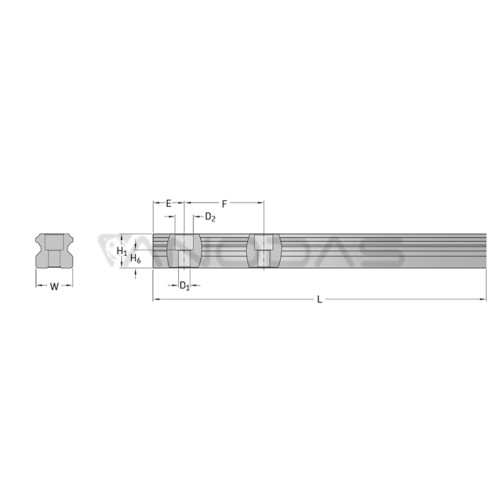

Height (H1): 26 mm
Flange width (F): 80 mm
Diameter of the inner ring (D1): 9 mm
Diameter of the outer ring (D2): 14 mm
Width (W): 28 mm
Size: 30
Height of the rail base (H6): 13.8 mm
Minimum clearance (Emin -0.75): 12 mm
Maximum clearance (Emax -0.75): 70 mm
Maximum play (Lmax -1.5): 3944 mm
