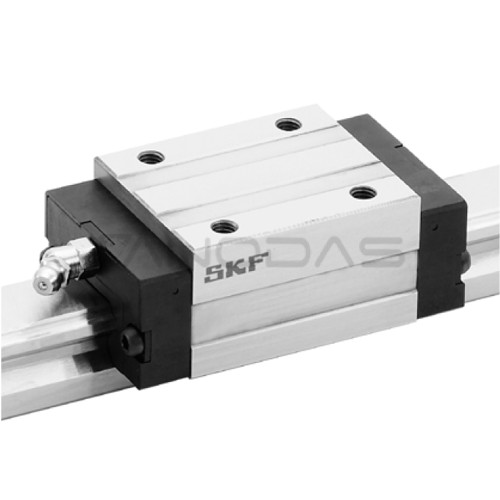

LLTHC 45 R T1 P5 carriage SKF

Brand: SKF
Product Code: MX-LLTHC-45-R-T1-P5
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
252.60€
Ex Tax: 208.76€

Qty

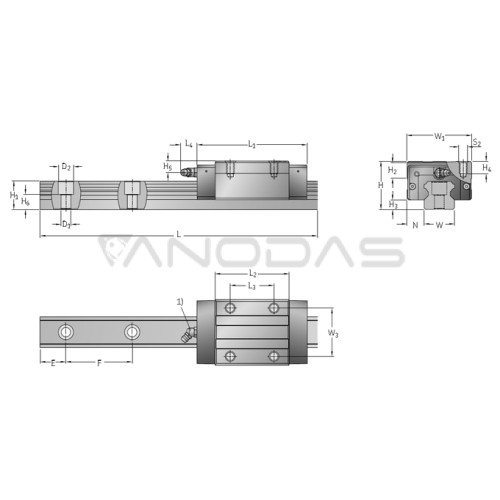

Height (H1): 38 mm
F: 105 mm
Overall length (L1): 135 mm
Effective length (L2): 96 mm
L3: 60 mm
Diameter of the inner ring (D1): 14 mm
Diameter of the outer ring (D2): 20 mm
Size: 45
Mounting screw size (S2): 45
L4: 14.6 mm
H4: 20.5 mm
H6: 20.8 mm
H5: 18.5 mm
Diameter of screw holes (D3): M10
Width (W1): 86 mm
Assembled dimensions (N): 20.5 mm
Assembled dimensions (H): 70 mm
Assembly dimensions (H2): 20.9 mm
Assembly dimensions (H3): 14 mm
Width (W3): 60 mm
Minimum clearance (Emin): 16 mm
Maximum clearance (Emax): 90 mm
Maximum play (Lmax): 3917 mm
Basic load (C): 91100
Base load (C0): 1215
Dynamic torque (MC): 1869
Static moment (MC0): 825
Dynamic torque (MA/B): 1270
Preload class: T1
Accuracy class: P5
Rail dimensions: 59200 mm
