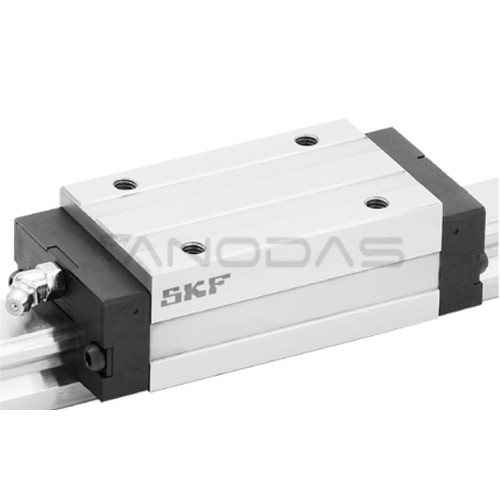

LLTHC 35 LR T1 P3 carriage SKF

Brand: SKF
Product Code: MX-LLTHC-35-LR-T1-P3
Availability: Temporarily Out Of Stock
189.10€
Ex Tax: 156.28€
Height (H1): 29 mm
F: 80 mm
Overall length (L1): 142.5 mm
Effective length (L2): 105.5 mm
L3: 72 mm
Diameter of the inner ring (D1): 9 mm
Diameter of the outer ring (D2): 14 mm
Size: 35
Mounting screw size (S2): 34 mm
L4: 14.6 mm
H4: 17 mm
H6: 17 mm
H5: 15 mm
Diameter of screw holes (D3): M8
Width (W1): 70 mm
Assembled dimensions (N): 18 mm
Assembled dimensions (H): 55 mm
Assembly dimensions (H2): 18 mm
Assembly dimensions (H3): 9.5 mm
Width (W3): 50 mm
Minimum clearance (Emin): 12 mm
Maximum clearance (Emax): 70 mm
Maximum play (Lmax): 3944 mm
Base load (C): 79400
Base load (C0): 694
Dynamic torque (MC): 1224
Static moment (MC0): 706
Dynamic torque (MA/B): 1246
Preload class: T1
Accuracy class: P3
Rail dimensions: 45000 mm
