LLTHC 30 LR T1 P3 carriage SKF

Brand: SKF
Product Code: MX-LLTHC-30-LR-T1-P3
Availability: Temporarily Out Of Stock
172.90€
Ex Tax: 142.89€

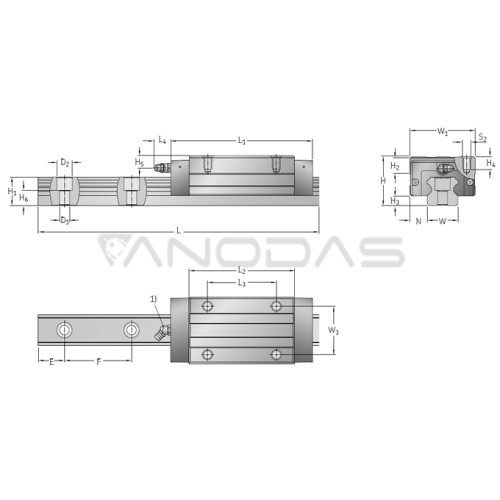

Height (H1): 26 mm
F: 80 mm
Overall length (L1): 125.4 mm
Effective length (L2): 92.4 mm
L3: 60 mm
Diameter of the inner ring (D1): 9 mm
Diameter of the outer ring (D2): 14 mm
Size: 30
Mounting screw size (S2): 28 mm
L4: 14.6 mm
H4: 11.2 mm
H6: 13.8 mm
H5: 11.2 mm
Diameter of screw holes (D3): M8
Width (W1): 60 mm
Assembled dimensions (N): 16 mm
Assembled dimensions (H): 45 mm
Assembly dimensions (H2): 14.3 mm
Assembly dimensions (H3): 9 mm
Width (W3): 40 mm
Minimum clearance (Emin): 12 mm
Maximum clearance (Emax): 70 mm
Maximum play (Lmax): 3944 mm
Base load (C): 60800
Base load (C0): 428
Dynamic torque (MC): 767
Static moment (MC0): 466
Dynamic torque (MA/B): 836
Preload class: T1
Accuracy class: P3
Rail dimensions: 33900 mm
