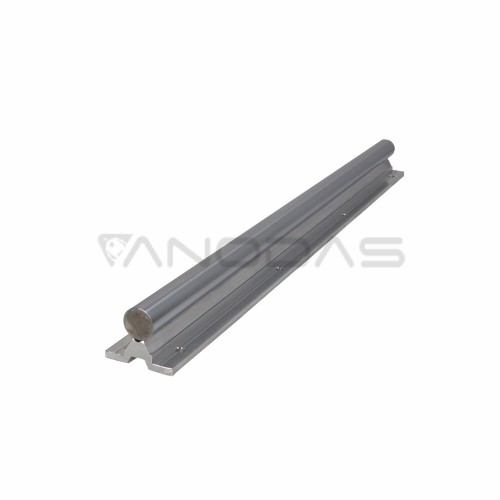

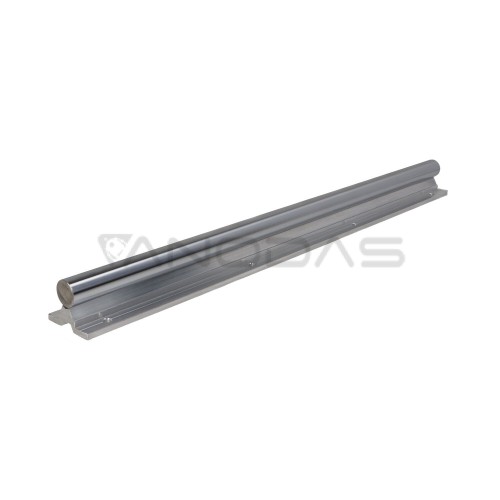

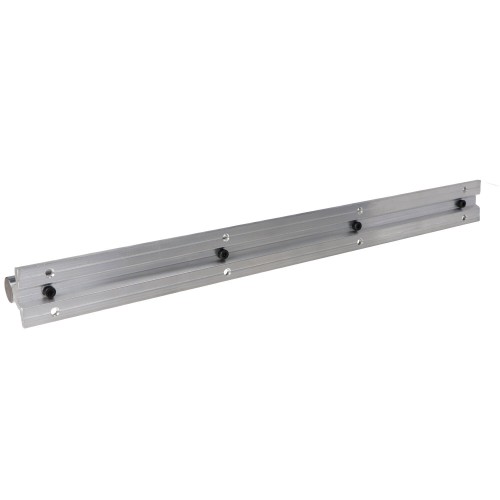

Linear shaft with support PW40 - 500mm

Brand: Wagney
Product Code: MX-PW40-500-Z-WA-K
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
54.30€
Ex Tax: 44.88€

Qty

Linear shaft with support PW40 - 500 mm
Width (B): 75 mm
Flange Height (F): 30 mm
Height (h): 48 mm
Support Base Width (C): 55 mm
Support Base Height (E): 37.5 mm
Length (P): 200 mm
Support Base Width (N): 25 mm
Shaft Diameter: 40 mm
Shaft Thickness (T): 9 mm
Angle Size: 60°
Drum Hole Diameter (S1): 9 mm
Drum Hole Arrangement (S2): 9x14x8.6 mm
Length (L): 500 mm
X: 15.5
Y: 17
