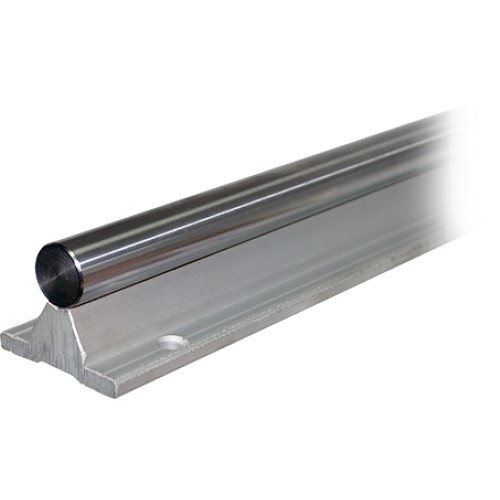

Linear shaft with support PW30 - 1000mm

Brand: Wagney
Product Code: MX-PW30-1000-Z-WA-K
Availability: Temporarily Out Of Stock
57.20€
Ex Tax: 47.27€
Linear shaft with support PW30 - 1000 mm
Width (B): 60 mm
Flange Height (F): 26.5 mm
Height (h): 36 mm
Support Base Width (C): 42 mm
Support Base Height (E): 30 mm
Length (P): 200 mm
Support Base Width (N): 100 mm
Shaft Diameter: 30 mm
Shaft Thickness (T): 7 mm
Angle Size: 60°
Drum Hole Diameter (S1): 6.6 mm
Drum Hole Arrangement (S2): 6.6x11x6.5 mm
Length (L): 1000 mm
X: 10.3
Y: 13
