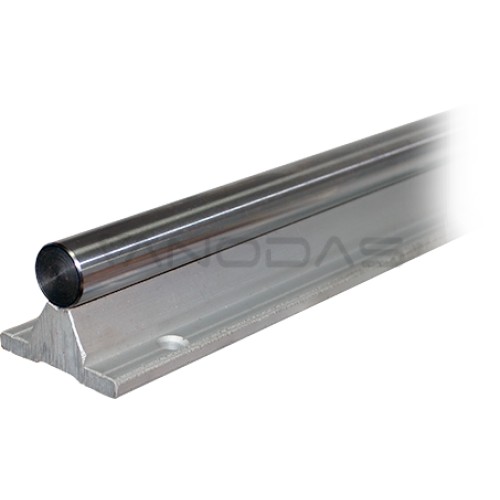

Linear shaft with support PW25 - 3500mm

Brand: Wagney
Product Code: MX-PW25-3500-Z-WA-K
Availability: Temporarily Out Of Stock
145.70€
Ex Tax: 120.41€
Linear shaft with support PW25 - 3500 mm
Width (B): 55 mm
Flange Height (F): 21 mm
Height (h): 33 mm
Support Base Width (C): 35 mm
Support Base Height (E): 27.5 mm
Length (P): 200 mm
Support Base Width (N): 50 mm
Shaft Diameter: 25 mm
Shaft Thickness (T): 6 mm
Angle Size: 60°
Drum Hole Diameter (S1): 6.5 mm
Drum Hole Arrangement (S2): 6.6x11x6.5 mm
Length (L): 3500 mm
X: 8
Y: 12
