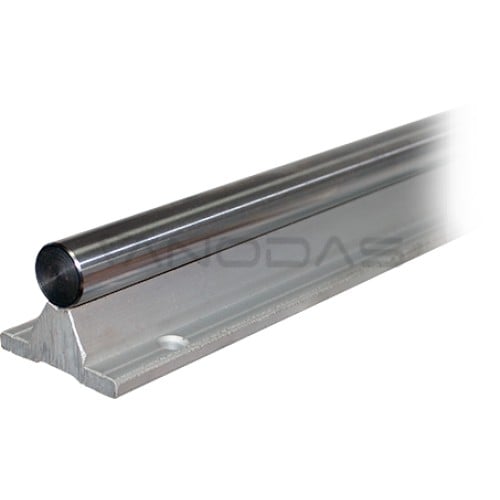

Linear shaft with support PW20 - 1500mm

Brand: Wagney
Product Code: MX-PW20-1500-Z-WA-K
Availability: Temporarily Out Of Stock
51.00€
Ex Tax: 42.15€
Shaft support fi20 PW20 - 1500 mm
Height (H): 17.7 mm
Width (B): 45 mm
Flange Height (F): 17.7 mm
Height (h): 27 mm
Support Base Width (C): 30 mm
Support Base Height (E): 22.5 mm
Length (P): 150 mm
Support Base Width (N): 75 mm
Shaft Diameter: 20 mm
Shaft Thickness (T): 5 mm
Angle Size: 60°
Drum Hole Diameter (S1): 5.5 mm
Drum Hole Arrangement (S2): 5.5x9.5x5.4 mm
Length (L): 1500 mm
X: 8
Y: 10
