Linear shaft end bracket WA50 Anodized

Brand: Wagney
Product Code: MX-WA50-ANODOWANY
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-04-23
122.70€
Ex Tax: 101.41€

Qty

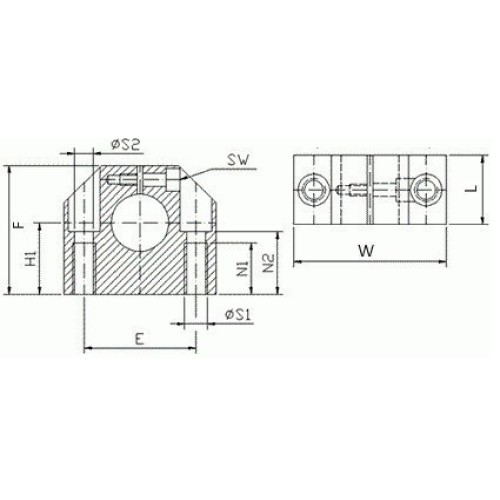

Length (L): 132 mm
Width (B): 58 mm
Diameter (d): 50 mm
Height (h): 105 mm
Mounting Screw (S1): M20
Mounting Screw Diameter (S2): 17.5 mm
Distance from Base to Shaft Center (N1): 43 mm
Distance from Base to Shaft End (N2): 49 mm
Height from Base to Shaft Center (H1 ±0.02): 60 mm
Distance from Base to Shaft End (E ±0.1): 100 mm
