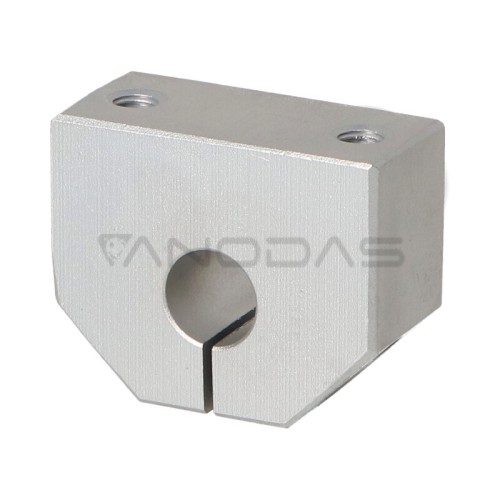

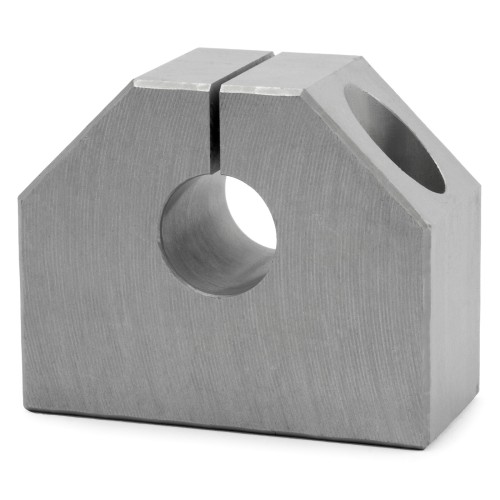

Linear shaft end bracket WA12 Anodized

Brand: Wagney
Product Code: MX-WA12-ANODOWANY
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-04-02
14.90€
Ex Tax: 12.31€

Qty

Length (L): 43 mm
Width (B): 20 mm
Shaft Diameter (d): 12 mm
Height (h): 35 mm
Mounting Screw (S1): M6
Mounting Hole Diameter (S2): 5.2 mm
Distance from Mounting Hole to Edge (N1): 13 mm
Distance from Mounting Hole to Opposite Edge (N2): 16.5 mm
Height from Base to Shaft Center (H1 ±0.02): 20 mm
Slot Width (S3): 10 mm
Distance from Base to Shaft End (E ±0.1): 30 mm
