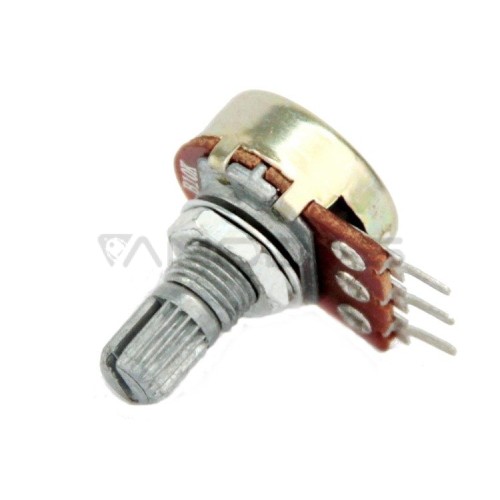

Linear potentiometer B0.1K 0.10K - 1 pcs

Product Code: ABC-18374
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-04-15
0.90€
Ex Tax: 0.74€

Qty

The potentiometer works on the principle of a classic voltage divider. A typical application of potentiometers is the regulation of current or voltage in electrical devices, e.g. volume in audio equipment.

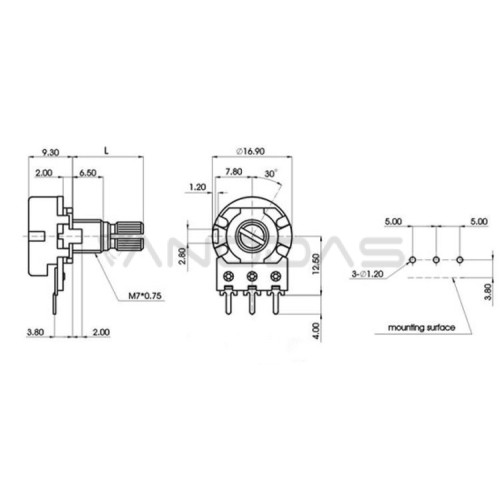

Specification:

  • Rotary potentiometer
  • Resistance: 0.1 KOhm
  • L axis length: 15 mm
  • Axle diameter: 6 mm
  • Housing: metal
  • Outputs: for printing
  • Pitch: 5 mm
  • Rotation angle: 300°
  • Characteristic: Linear
  • Tolerance: +/- 20%
  • Power: 0.125 W
  • Working temperature: -10 °C - 70 °C
