Linear carriage INA KWVE15-B-H-G3-V1
Brand: INA
Product Code: MX-L-KWVE15-B-H-G3-V1
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-14
Product Code: MX-L-KWVE15-B-H-G3-V1
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-14
Ex Tax: 82.98€

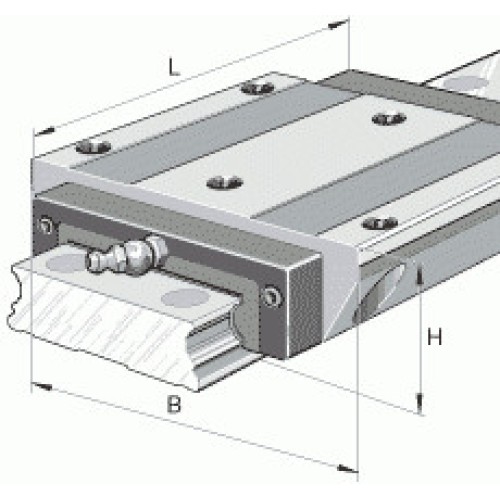

Length (L): 61.2 mm
Height (H): 28 mm
H1: Not specified
Width (b): 15 mm
Overall Width (B): 34 mm
h: 15 mm
Dynamic Load Rating (C): 7200 N
H2: 4.3
L1: 39.8 mm
H4: Not specified
A1: 9.5
A3: 8.3
Mounting Screw Size (K3): Not specified
Maximum Length (l max): 1200 mm
Maximum Acceleration (aL max): 53 m/s²
Minimum Acceleration (aL min): 20 m/s²
Maximum Deceleration (aR max): 53 m/s²
Minimum Deceleration (aR min): 20 m/s²
Dynamic Moment of Inertia (jL): 60 kg·mm²
Mounting Screw Size (G2): M4
H5: 4.75 mm
Distance JB (JB): 26 mm
Distance JL (JL): 26 mm
Screw Size (T5): 6 mm
Weight Mass (mw): 0.2 kg
Static Mass (ms): 1.44 kg
Static Load Rating (C0): 14500 N
Mass (M0x): 150 g
Mass (M0y): 100 g
Mass (M0z): 100 g
Mounting Screw Size (K1): M4
A4: 7.2
Mounting Screw Size (K6): Not specified
A2: 4
