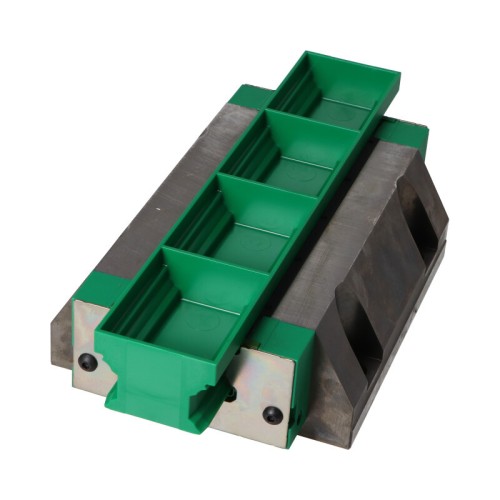

Linear carriage INA KWVE 45-B-L-G3-V1

Brand: INA
Product Code: MX-L-KWVE45-B-L-G3-V1
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-04-18
283.90€
Ex Tax: 234.63€

Qty

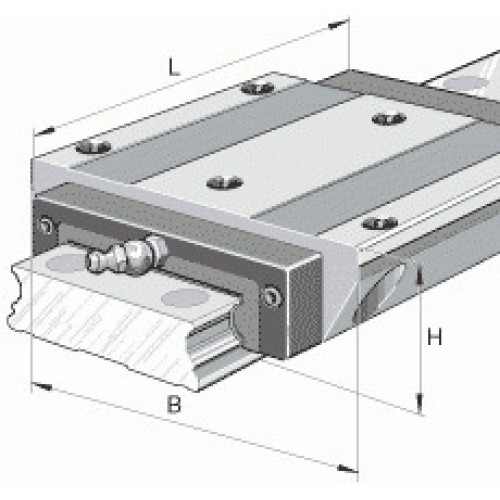

Length (L): 140.6 mm
Height (H): 60 mm
h1: 15.7 mm
Width (b): 45 mm
Overall Width (B): 120 mm
h: 34.2 mm
Dynamic Load (C): 82000 N
h1: 9.7 mm
L1: 134.6 mm
H4: 19.9 mm
A1: 37.5
A3: 16.5
K3: M10
Maximum Length (l max): 5835 mm
Maximum Acceleration (aL max): 94 m/s²
Minimum Acceleration (aL min): 20 m/s²
Maximum Deceleration (aR max): 94 m/s²
Minimum Deceleration (aR min): 20 m/s²
Dynamic Inertia Moment (jL): 105
Mounting Screw Size (G2): M12
H5: 9.25 mm
Distance JB (JB): 100 mm
Distance JL (JL): 80 mm
Screw Size (T5): 15 mm
Weight (mw): 4.3 kg
Static Mass (ms): 9.2 kg
Static Load (C0): 181000 N
Mass (M0x): 4635 g
Mass (M0y): 4000 g
Mass (M0z): 4000 g
Mounting Screw Size (K1): M12
A4: 16.5
Mounting Screw Size (K6): M10
A2: 10
