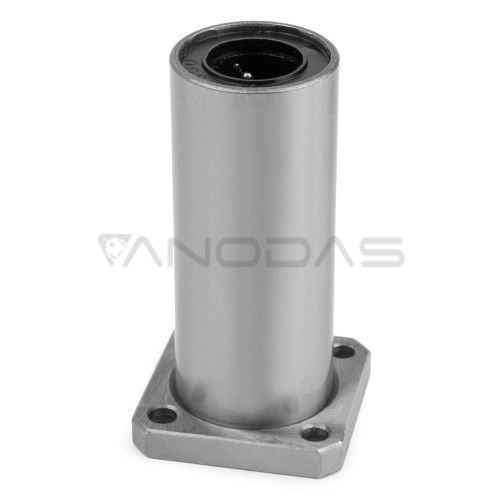

Linear bearing with square flange LMK30UU-L

Brand: Wagney
Product Code: MX-LMK30UU-L
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-04-11
21.60€
Ex Tax: 17.85€

Qty

Height (H): 10 mm
Shaft Diameter (d1): 6.6 mm
Hole Diameter (d2): 11 mm
Height (h): 10 mm
Height (h): 6.5 mm
Center Height (C): 58 mm
Center-to-Center Diameter (PCD): 60 mm
Dynamic Load Capacity: 5490 N
Static Load Capacity: 2490 N
Shaft Diameter (d): 30 mm
Sleeve Diameter (D): 45 mm
Flange Diameter (D1): 74 mm
Length (L): 123 mm
