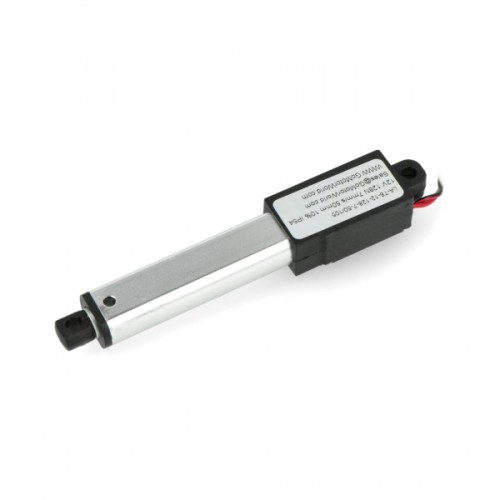

Linear Actuator LD1 32N 12V - 10cm stroke

Brand: Elektrobim
Product Code: AN-15478
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
82.80€
Ex Tax: 68.43€

Qty

Electric Jack with a lifting capacity of up to 32N( 3,2 kg) when the voltage of 12V. The device operates at a speed of 30mm/s, and its maximum diameter is 10cm. Class of protection IP54. The actuator cylinder is made of aluminum.

Technical data:

  •     Voltage    12 V DC
  •     Speed   30 mm/sec
  •     Max power    32N (3,2 kg)
  •     Work cycle    10%
  •     The material: Aluminium
  •     The length of the translation 10cm
  •     Overall length in folded condition L(min)  163 mm
  •     Tightness class IP54
  •     Operating temperature -25°C to 65°C
  •     The sound intensity level in the process   Up to 55 dB
