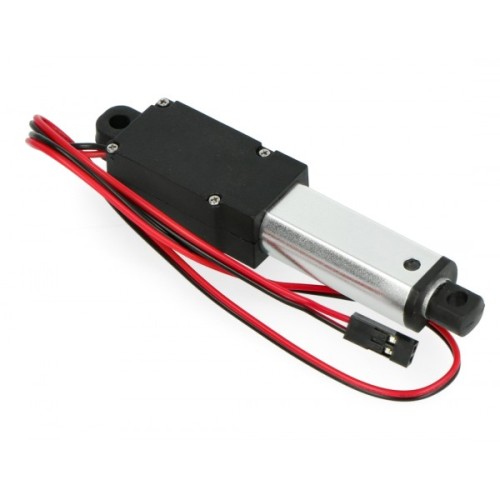

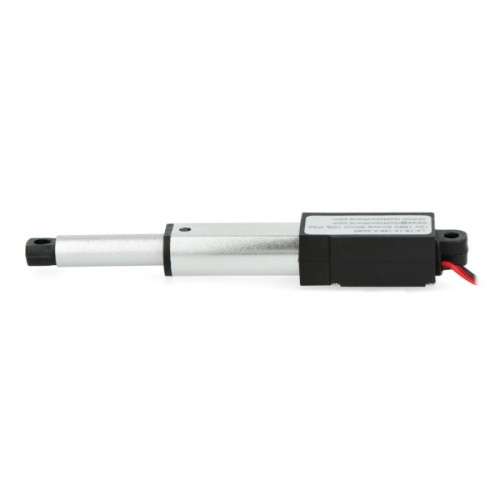

Linear Actuator LD1 188N 12V - 3cm stroke

Brand: Elektrobim
Product Code: AN-15475
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
82.80€
Ex Tax: 68.43€

Qty

Compact size, drive electric. Supply voltage 12 V. the Device operates at a speed of 5 mm/h, which allows the increase of 18.8 kg (N 188). Has protection class IP54. The tube drive is made of aluminum.

Technical data:

  • Voltage    12 V DC
  • Speed    5 mm/sec
  • Max power    188 N (18.8 kg)
  • Work cycle    10%
  • The material of manufacture tube drive    Aluminium
  • The length of the translation    30 mm
  • Overall length in folded condition L(min)    93 mm
  • Tightness class    IP54
  • Operating temperature    -25°C to 65°C
  • The sound intensity level in the process    Up to 55 dB
