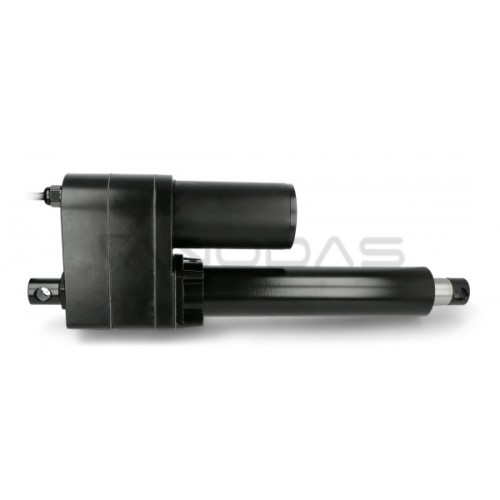

Linear Actuator LA50P 2000N 50mm/s 12V with potentiometer - stroke 15cm

Product Code: AN-17105
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
240.20€
Ex Tax: 198.51€

Qty

Linear actuator with potentiometer. Supply voltage is 12 V. the Permissible load of the device is 200 kg (2000 N). The maximum diameter is 15 cm, protection against exceeding this range represent two limit switches. The drive has a protection class of IP65, which allows its use in humid and dusty places.

Technical data:

  • Voltage    12 V DC
  • Speed    50 mm/sec
  • Max power    2000 N (200 kg)
  • Work cycle    25%
  • The length of the translation    150 mm
  • Overall length when folded    400 mm
  • Mounting type    mount H
  • Operating temperature    -25°C to 65°C
  • Security    limit switches
  • Tightness class    IP65

The use of linear actuators

  •     Auto: the valve lift, plows in motor vehicles
  •     The movable elements in the home automation systems
  •     Closing valves
  •     Control of inclination of solar panels in photovoltaic systems
  •     Automatic, accurate and industrial
  •     Elements of industrial machinery and agricultural machinery
