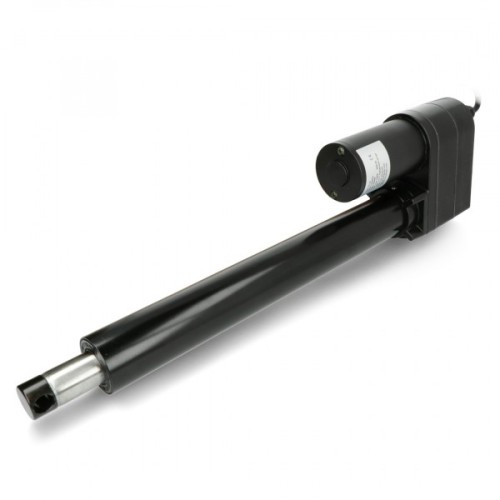

Linear Actuator LA50P 1500N 100mm/s 12V with potentiometer - stroke 30cm

Product Code: AN-17106
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
338.30€
Ex Tax: 279.59€

Qty

Linear actuator with max wysuwie 30 cm, protected by two circuit breakers quite. The maximum capacity of the device is 150 kg (1500 N). Due to the high degree of tightness IP65, LA50P can be used in conditions of high humidity and dust. The actuator is powered by a voltage of 12 V. it Has a built-in potentiometer.

Technical data:

  • Voltage    12 V DC
  • Speed    100 mm/sec
  • Max power    1500 N (150 kg)
  • Work cycle    25%
  • The length of the translation    300 mm
  • Overall length when folded    550 mm
  • Mounting type    mount H
  • Operating temperature    -25°C to 65°C
  • Security    limit switches
  • Tightness class    IP65
The use of linear actuators
  • Adjusting the position of dampers and plows in motor vehicles
  • Opening and closing valves, industrial
  • Tilt of solar panels in fotowoltaice
  • As an item to cancel and domykający Windows and doors to home automation
  • Components of agricultural machinery
