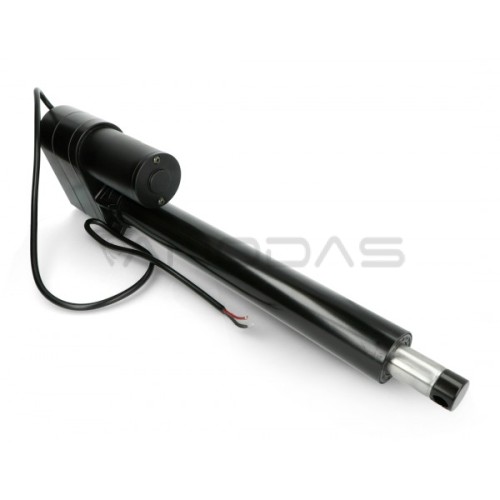

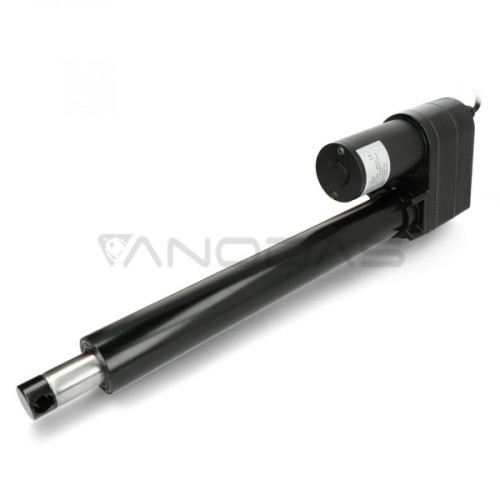

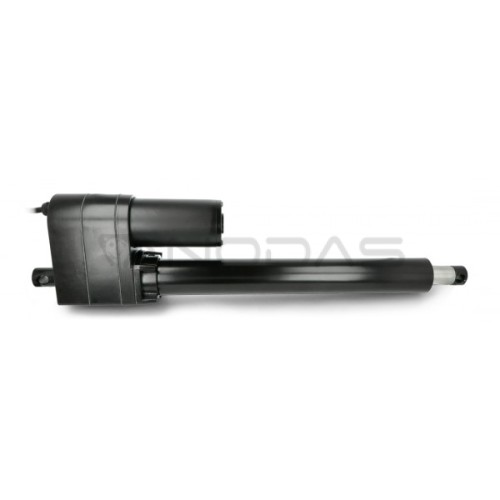

Linear Actuator LA50 1500N 100mm/s 12V - stroke 30cm

Product Code: AN-17103
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-16
225.50€
Ex Tax: 186.36€

Qty

The drive cable on a power voltage of 12 Volts. The maximum diameter is 30 cm and is limited to two switches highly. LA50 has a protection class of IP65. Maybe due to this is used in locations subject to high humidity and dust. The load bearing capacity of the cylinder is 150 kg (1500 N).

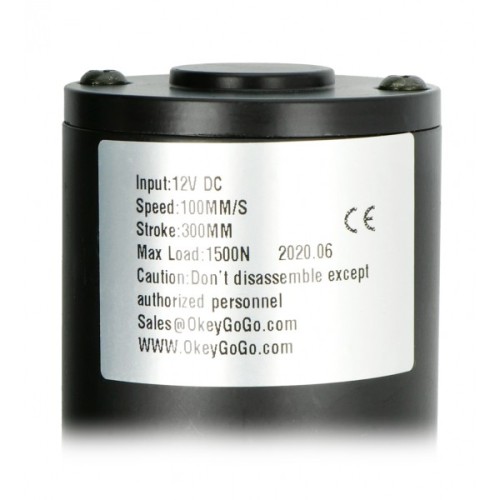

Technical data:

  • Voltage    12 V DC
  • Speed    100 mm/sec
  • Max power    1500 N (150 kg)
  • Work cycle    25%
  • The length of the translation    300 mm
  • Overall length when folded    550 mm
  • Mounting type    mount H
  • Operating temperature    -25°C to 65°C
  • Security    limit switches
  • Tightness class    IP65

The use of linear actuators

  • The opening and closing of valves, industrial
  • Position the solar panels in photovoltaic systems
  • Automatic, accurate and industrial
  • Machine components for agricultural and industrial
  • Elements of home automation
