Linear actuator 24V - SPJ QARL 2436

Brand: QC - Quality Control
Product Code: MX-QARL-2436
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-19
230.80€
Ex Tax: 190.74€

Qty

Created for specialist environments and professional applications, adapted to work with very heavy loads, the QARL actuator is very popular in the world of automation. The parameters and performance meet world standards at the highest level and will satisfy even the most demanding user.

The double-acting actuator is a very versatile device with almost unlimited possibilities of use in industrial and agricultural automation (ventilation, lifts, agricultural machines, etc.), and home automation (doors, windows, gates, wickets, etc.), all for very attractive money.

Installation and use of the actuator is not a problem (possibility of using dedicated control systems), and safety is ensured by limit switches. Additionally, the actuator is equipped with two additional limit contacts, protecting against exceeding the extension limits.

The direction of feed is controlled by changing the polarity. The actuator is driven by a direct current (DC) motor. When designing the device, we also thought about less experienced users, through free and simple adjustment of limit contacts. Main advantages include precision of workmanship (even perfect), refined from every angle, high tightness (allowing for easy operation in difficult weather conditions), and quiet operation.

Possibility of controlling devices such as windows, antennas, lifts, dental chairs, doors, hatches for the basement or attic, and many others. The QARL actuator can also be used as an anti-burglary system. After work stops, the gear will not allow any manipulation of the element connected to the device. It is possible to determine the exact position of the actuator thanks to the use of a pulser (48 pulses per inch). Just connect the pulse counting system.

Advantages of our actuator:
  • Very high durability of the housing.
  • Control and power supply 24V DC.
  • Careful workmanship.
  • Simplicity of connection.
  • Quiet operation, stability and reliability.
  • High tightness and resistance to adverse environmental influences.
  • Customized articulating mounts.
  • Possibility of free adjustment of extension.
Control options:
  • Automation using sensors or time programming.
  • Remote control via radio remote control.
  • Manual control buttons on the cables.

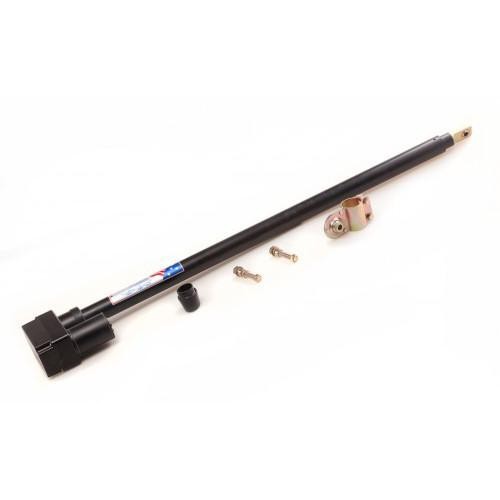

Set includes:
  • Super Power Jack QARL double acting actuator.
  • Articulated attachment in the form of a shoulder strap.
  • Mounting screws.
  • Seal at the end of the arm.
  • 12-month manufacturer's warranty and instructions in Polish.

Diameter d [mm]: 45
Length L [mm]: 1165
Series: SPJ QARL
Operating temperature [°C]: -25°C...+65°C
Protection class: IP 52
Speed: 4.5 mm/s
Pulse resolution: 48 imp/inch
Force: 3000 N (300 kg)
Range L: 910 mm
Supply voltage: 24 VDC
Maximum current: 4 A
Limit switches: Adjustable
