Limit switch with a roller - WK7121

Brand: OEM
Product Code: AN-14638
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
5.80€
Ex Tax: 4.79€

Qty

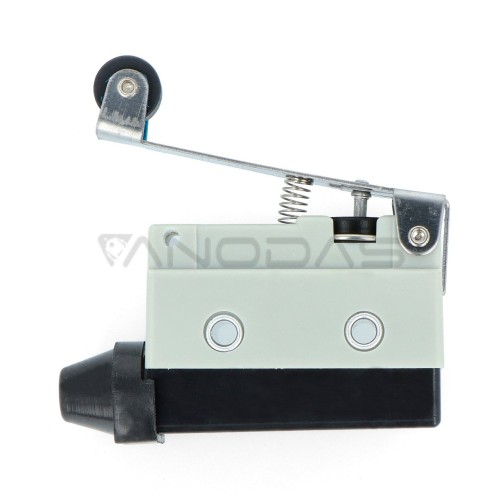

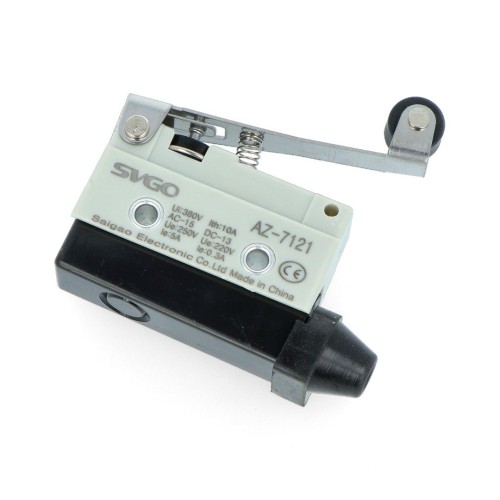

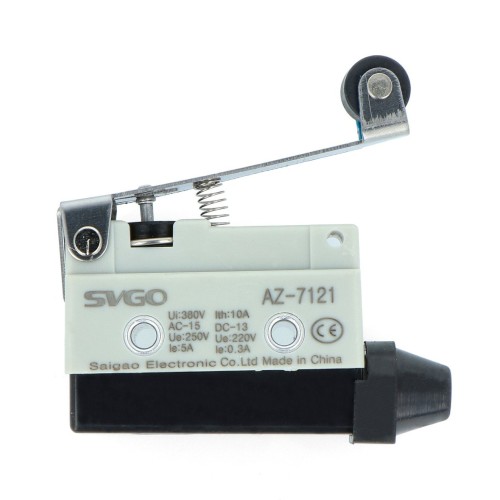

Limit switch with 7 cm long lever ended with a roller. It operates with 250 V and the maximum load is 5 A. The limit switch is used to detect the set position of the moving element. It will disconnect the circuit or the entire device when the specified position is reached. It is usually installed in machine trolleys, at the ends of the running rails, to prevent a certain point from being exceeded.

Specification:

  • Number of switch positions: 2
  • Switch type: monostable
  • Number of switch circuits: 1
  • Switch type: extreme
  • Switch current: 5 A
  • The way you switch: ON - (OFF) / OFF - (ON)
  • Switch voltage: 250 V
  • Number of exits: 3
  • Type of connection: screwed
  • The lever has a roller at the end
  • Mechanical installation: screwed on
  • Length of lever: 70 mm
  • Dimensions: 70 x 40 x 20 mm
