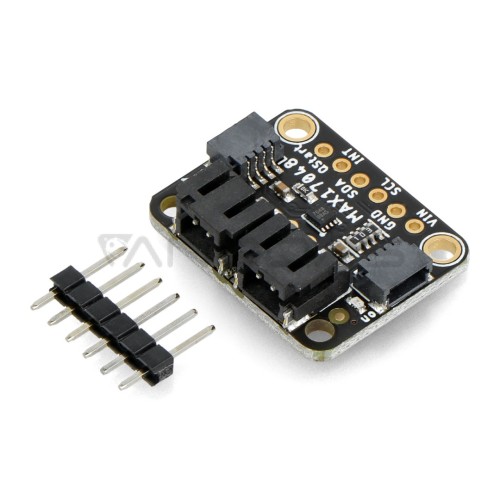

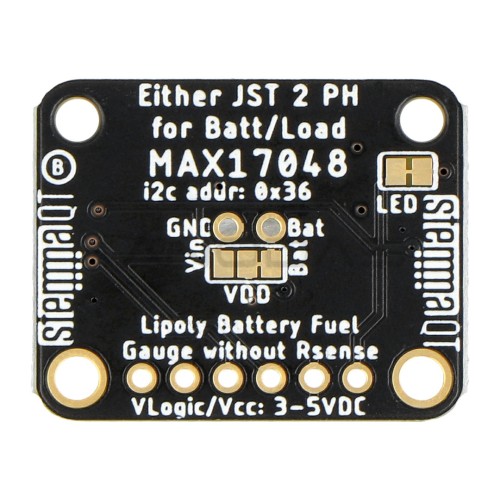

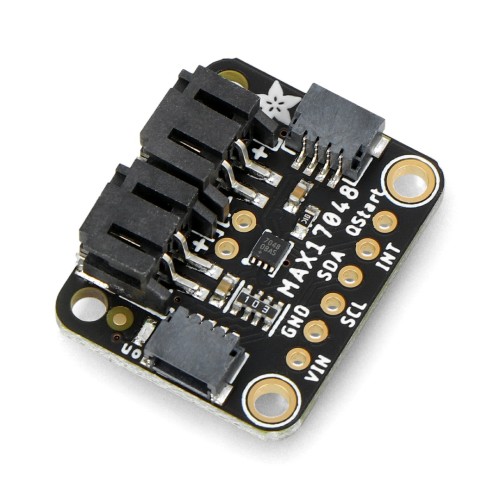

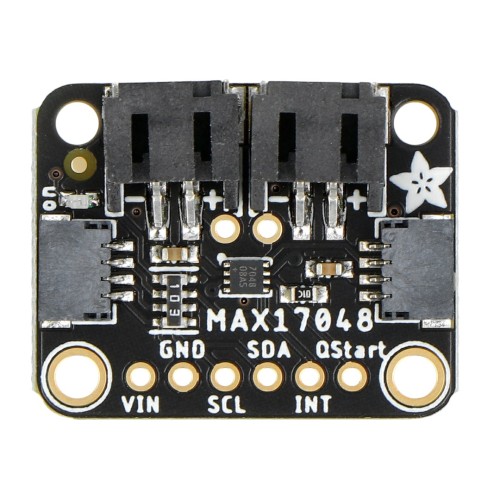

Li-Pol/Li-Ion battery charge meter - MAX17048 - STEMMA JST PH & QT/Qwiic - Adafruit 5580
Brand: Adafruit
Product Code: AN-21997
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-14
Product Code: AN-21997
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-14
Ex Tax: 9.75€
Compact meter based on the MAX17048 chip, which allows you to monitor the charge level of single-target Li-Pol and Li-Ion packets with a voltage ranging from 3.7 V to 4.2 V. The board communicates with the main module using the I2C bus. In addition, it is equipped with two Qwiic connectors, with which you can quickly connect it to a module equipped with the same connectors. The battery is connected to the JST connector with a pitch of 2 mm. The set also includes a 1x6 pin goldpin strip, which allows for an alternative connection using soldering pads.
Specification:
Specification:
- Type: battery meter/indicator
- Built-in chip: MAX17048
- Supported batteries: Li-Pol / Li-Ion 1S
- Supported battery voltage range: 3.7 V to 4.2 V
- Communication interface: I2C bus
- Interface address: 0x36
- Working voltage: 3 V to 5 V DC
- Connectors:
- battery: JST 2 mm
- communication: STEMMA QT / Qwiic / pads
- Tile sizes: 25.7 x 20.3 x 7.2 mm
- Weight: 2.6 g
- Battery charge meter Li-Pol/Li-Ion - MAX17048 - STEMMA JST PH & QT/Qwiic
- 1x6 pin goldpin strip - 2.54 mm raster
