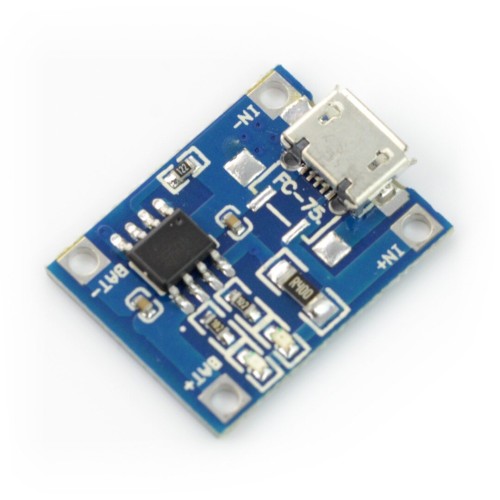

Li-Pol charger TP4056 1S 3.7V microUSB

Product Code: AN-06942
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-16
2.50€
Ex Tax: 2.07€

Qty

Simple charger for 1-purpose lithium-polymer batteries with a nominal voltage of 3.7 V. Maximum charging current is 1000 mA. The system is powered via the microUSB connector or via wires connected to the IN+ and IN- inputs.

Specification:

  • Layout: TP4056
  • Power supply voltage: (microUSB or IN connectors) from 4.5 V to 5.5 V
  • Charging voltage: 4,2 V
  • Maximum charging current: 1 A
  • Socket: microUSB (microUSB cable can be purchased separately)
  • Two signal lights
    • Red: charging
    • Green: full charge
  • Module dimensions 25 x 18 mm
