LED RGB Ring WS2812 5050 x 16 diodes - 44mm

Product Code: AN-09398
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-16
9.50€
Ex Tax: 7.85€

Qty

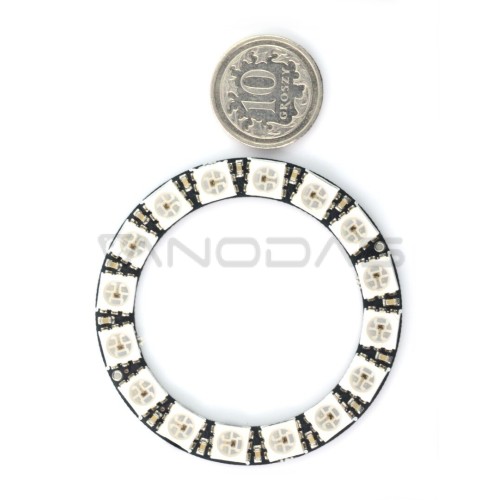

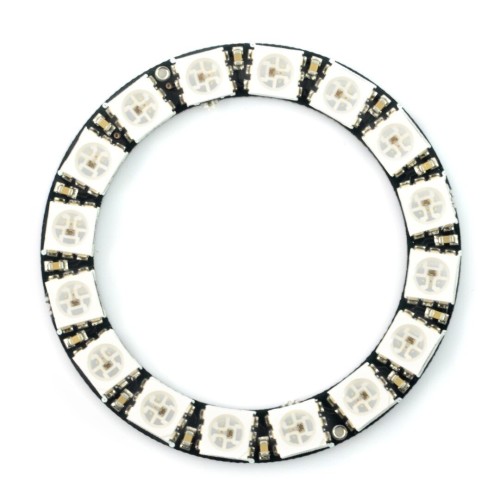

The ring consists of 16 individually addressed RGB LEDs with an integrated controller. The module needs a single pin of the microcontroller, e.g. an Arduino. The LEDs are arranged at equal distances on the circumference with an outer diameter of 44 mm. Each of them consumes a current of 18 mA, which in this case gives a total value of approx. 290 mA. The ring can be powered with a voltage of 5 V.

Specification:
  • Supply voltage: 5 V
  • Current consumption: 18 mA for a single diode
  • Applicable light: LED RGB WS2812
  • Number of LEDs: 16
  • Outer circle diameter: 44 mm
  • The inner diameter of the circle: 34 mm
