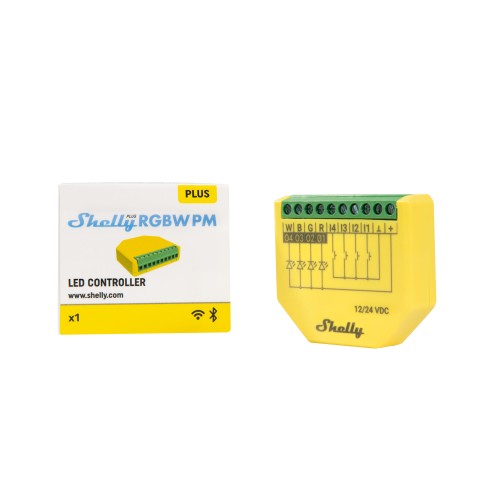

LED juostos valdiklis Shelly Plus RGBW PM

Introducing a compact and versatile RGBW controller designed for effortless management of any LED strip. With support for RGBW, RGB, and white light profiles, this controller offers unparalleled flexibility for creating the perfect ambiance for any occasion. Its power measurement feature provides real-time insights into energy consumption, ensuring optimal efficiency.

Key Features:

• Compatibility: Supports any 12V or 24V DC white (or colored), RGB, and RGBW LED strips.
• Power Measurement: Keep track of energy usage effortlessly.
• Customizable Profiles: Features three lighting profiles for easy customization.
• Adjustable Transitions: Set transition durations and fading speeds, along with minimum and maximum brightness levels.
• Independent Control: Control RGB and white light brightness separately for tailored illumination.
• Night Mode: Convenient low-light setting for nighttime use.
• Overcurrent Protection: Safeguards your devices against electrical surges.
• Wi-Fi Range Extender & BLE Gateway: Expands connectivity options for enhanced functionality.
• High-Speed Processing: Equipped with an ultra-fast ESP32 processor for quick response times.
• Versatile Connectivity: Supports scenarios, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, and custom certificates.
• No Hub Required: Easily manage through the Shelly Smart Control app, compatible with most platforms and protocols, including voice assistants like Alexa and Home Assistant.

Physical Specifications:

• Dimensions (AxPxD): 42 x 37 x 12 mm / 1.65 x 1.46 x 0.47 in
• Weight: 16 g / 0.56 oz
• Maximum Screw Terminal Torque: 0.2 Nm / 1.8 lb
• Wire Cross-Section: 0.1–1 mm² / 30–16 AWG (solid, twisted, and stranded conductors)
• Wire Strip Length: 6 mm / 0.24 in
• Mounting: Wall-mounted
• Housing Material: Plastic
• Housing Color: Yellow
• Connector Color: Green

• Operating Temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30–70% relative humidity

• Power Supply: 12/24 V DC
• Power Consumption: < 1.2 W

• Maximum Control Voltage: 24 V DC
• Maximum Control Current: 4 A per channel (total 10 A)
• Range: Up to 30 m / 98 ft indoors and 50 m / 164 ft outdoors (dependent on local conditions)

• Protocol: 4.2
• RF Band: 2400–2483.5 MHz
• Maximum RF Power: < 4 dBm
• Range: Up to 10 m / 33 ft indoors and 30 m / 98 ft outdoors (dependent on local conditions)

• CPU: ESP32
• Clock Frequency: 160 MHz
• RAM: 400 KB
• Flash Memory: 4 MB

• Schedules: Up to 20 schedules
• Webhooks: 20 with 5 URLs per webhook
• Scenes: Yes
• MQTT Support: Yes
