LCD 1.28'' 240x240px touch display for Seeed Xiao - Seeedstudio 104030087

Brand: Seeedstudio
Product Code: AN-22924
Availability: 4-6 business days
Planned delivery date after ordering: 2024-12-27
28.10€
Ex Tax: 23.22€

Qty

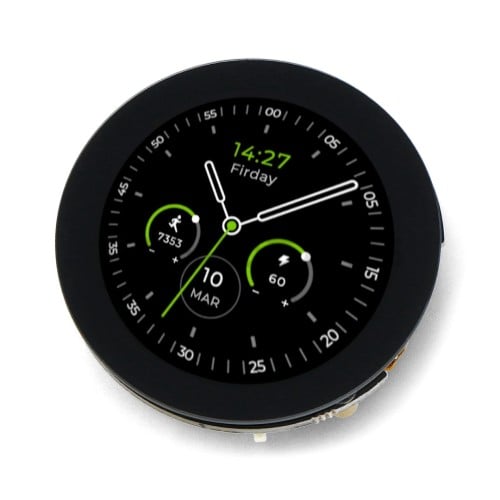

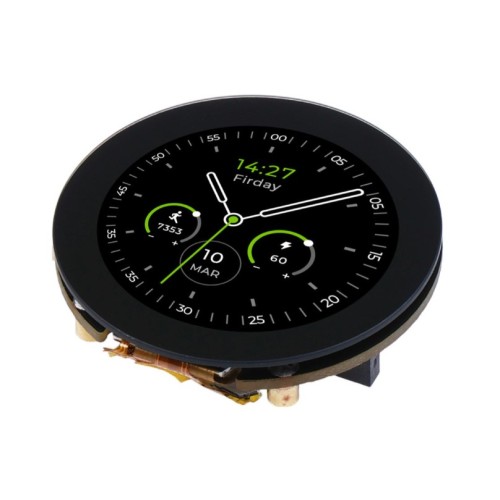

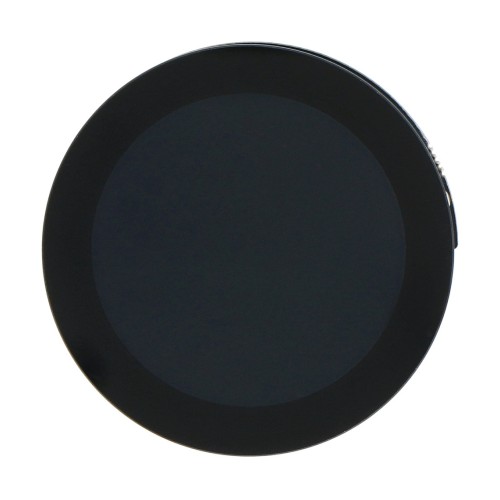

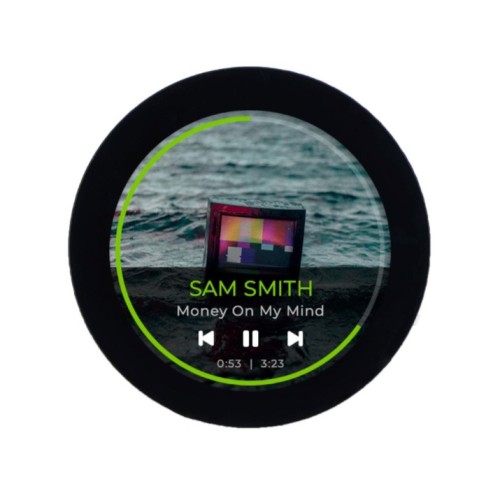

Round display with leads for direct connection of the Seeed Xiao module. There is capacitive touch all over the screen. The diagonal of the screen is 1.28", its resolution is 240x240px, and it can display an image with 65,000 colors. On the display board, there is also an RTC chip with space for a battery, a microSD card slot (supports cards with a capacity of up to 32 GB), a JST 1.25 connector for connecting the battery and a lithium battery charger circuit. The module is ideal for a 39 mm programmable smartwatch, wearable and other projects: from displaying data from sensors to creating an interactive interface.

Main features:
  • 1.28" display, 240x240px, 65K colors, for clear and colorful images
  • Works with all Xiao series products
  • Built-in RTC chip, lithium battery charging system, microSD card slot, JST 1.25 connector
  • It has a diameter of 39 mm, suitable for wearable and space-constrained designs
  • All pins have been brought out, no soldering is required
Specification:
  • Power supply: USB type C 5 V / 45 mA, Li-Pol charger 3.7 V / 37 mA
  • Battery connector: JST 1.25 mm 3.7 V battery
  • Charging current: approx. 485 mA
  • RTC battery: CR927
  • RTC chip: PCF8563
  • microSD card: up to 32 GB FAT
  • Display: THT LCD
  • Diagonal: 1.28"
  • Resolution: 240x240px
  • Number of colors: 65,000
  • Frequency: 100 Hz
  • Module dimensions: 43 x 43 mm
