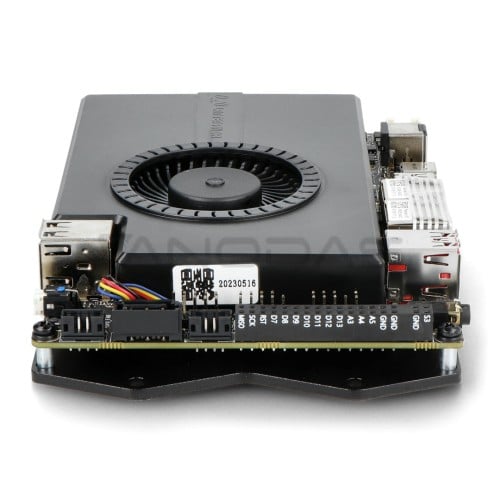

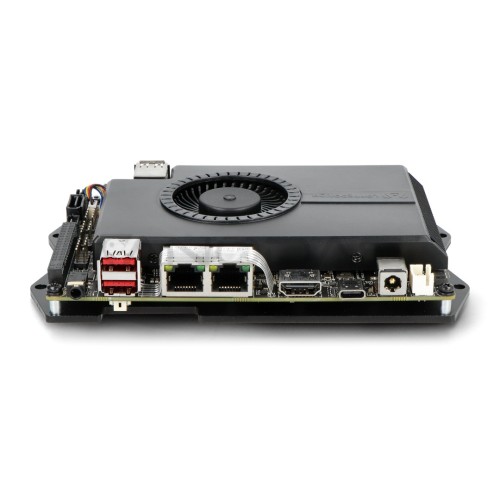

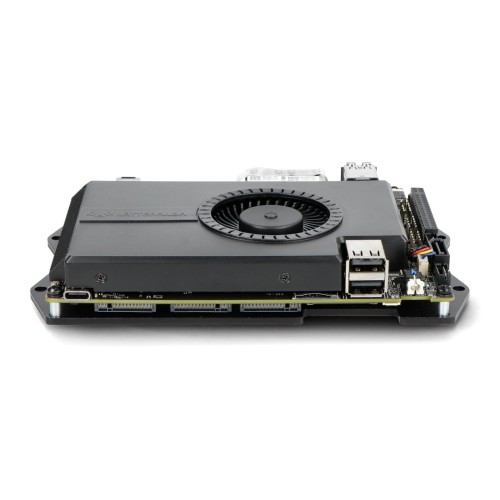

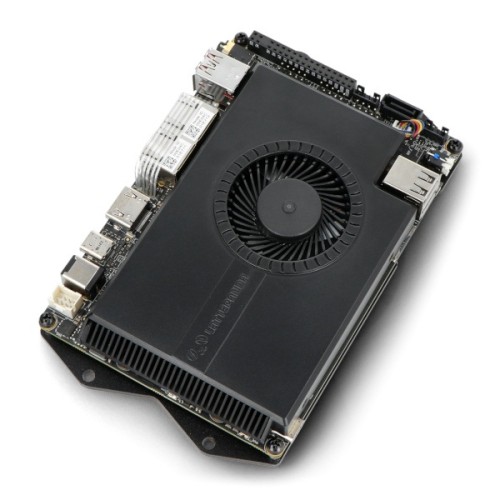

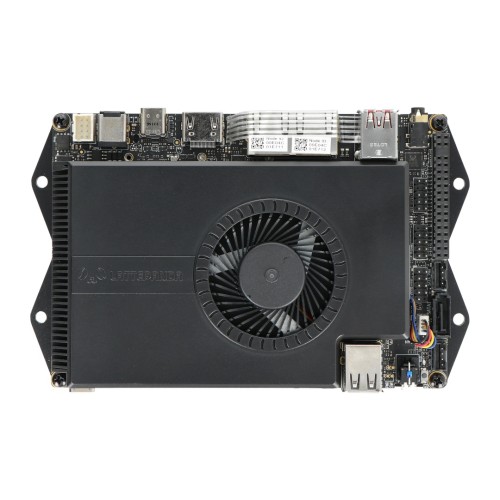

LattePanda Sigma is another version of the popular single-board computer (SBC). It is based on the 13th generation Intel processor - Intel Core i5-1340P with 12 cores and 16 threads, clocked from 1.9 GHz to 4.6 GHz for Performance-Core cores. It has an integrated Intel Iris Xe Graphics graphics chip clocked from 400 MHz to 1450 MHz. The board is equipped with 16 GB of dual-channel LPDDR5 6400 MHz RAM and a fast PCIe 4.0 x4 SSD with a capacity of 500 GB. The set also includes a WiFi 6E module enabling wireless communication. The many available pins also include USB 3.2, Thunderbolt 4, Ethernet, HDMI, and eDP. The ATmega32U4-MU coprocessor is compatible with Arduino and allows the use of GPIO connectors to connect sensors and many other modules. The computer supports systems such as Windows 10, 11 and Linux.

Main features:

The 13th generation Intel processor - Intel Core i5-1340P with 12 cores and 16 threads is characterized by very good performance
Fast RAM - 16 GB of dual-channel LPDDR5 memory clocked at 6400 MHz allows you to use many applications simultaneously while maintaining high-speed
Capacious SSD - 500 GB PCIe 4.0 x4 drive from WD ensures fast operation of the operating system and allows you to store many files
Wireless communication options - the set includes a WiFi 6E module. It is also possible to use 4G and 5G modems
Multiple video outputs - HDMI 2.1, USB Type C (DP 1.4a with resolution up to 8K) and eDP for use in embedded systems
High data transfer speed - 2 x USB 3.2 Gen 2, 2 x Thunderbolt 4, 2 x Ethernet 2.5 GbE guarantee fast data transfer between devices
The built-in Atmega32U4-MU coprocessor - compatible with Arduino - thanks to the GPIO connectors allows you to connect sensors or actuators
Support for Windows 10 and Windows 11 operating systems, as well as Linux systems: Ubuntu, Promox VE

Specification:

Processor: Intel Core i5-1340P

Number of cores: 12 (16 threads)
CPU clock speed: Ranging from 1.9 GHz to 4.6 GHz

Graphic layout: Intel Iris Xe Graphics
RAM: 16 GB LPDDR5-6400 (dual-channel)
Mass memory: 500 GB PCIe 4.0 x4 SSD
Coprocessor: Atmega32U4-MU compatible with Arduino
GPIO socket: 34-pin female connector
Security: TPM 2.0
USB interfaces:

2 x USB 2.0 Type A
2 x USB 3.2 Gen2 Type A
2 x Thunderbolt 4 - USB Type C connector

Network interface: 2 x Ethernet ports 10/100/1000/2500 Mb/s
Video:

1 x HDMI 2.1
1 x DP 1.4a - USB type C connector
1 x eDP 1.4b display connector

Audio: Microphone and headphone connector - 3.5 mm Jack
M.2 connectors:

2 x M.2 M key - PCIe 4.0 x4, PCIe 3.0 x4
1 x M.2 B key - SATA III/PCIe 3.0 x1, 4G, 5G communication modules
1 x SATA 6Gb/s port
1 x M.2 E key - for CNVio/PCIe WiFi modules

Power connectors:

1 x DC Jack 5.5 mm x 2.1 mm - 12 V to 20 V
1 x USB Type C - PD 20V

Additional pins:

1 x 4-pin USB 2.0 connector - 2.0 mm pitch
1 x 4-pin fan connector - 1.27 mm pitch
1 x 9-pin connector - front panel - 2.54 mm pitch
1 x 9-pin connector - audio input/output - 2.54 mm pitch
1 x COM - RS232, RS485

RTC battery: CR1220 - 3V
Working temperature: From 0°C to 45°C
Plate dimensions: 146 x 102 x 24 mm

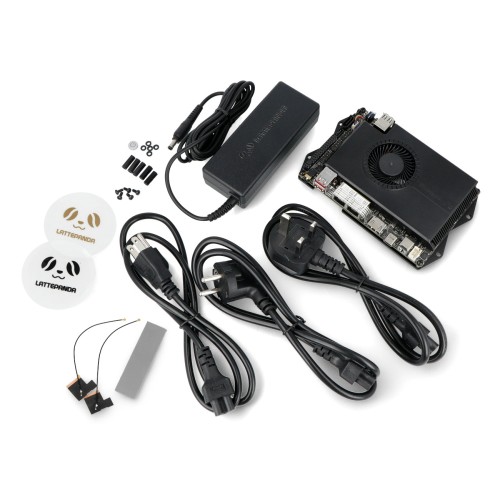

Set includes:

1 x LattePanda Sigma - 16 GB RAM - M.2 NVMe - Intel Core i5-1340P
1 x M.2 NVMe SSD 500 GB
1 x Intel WiFi 6E Module
2 x WiFi/Bluetooth Antenna

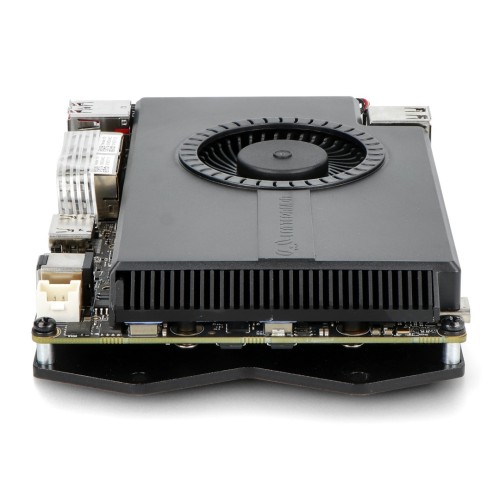

1 x Cooling fan (built-in)

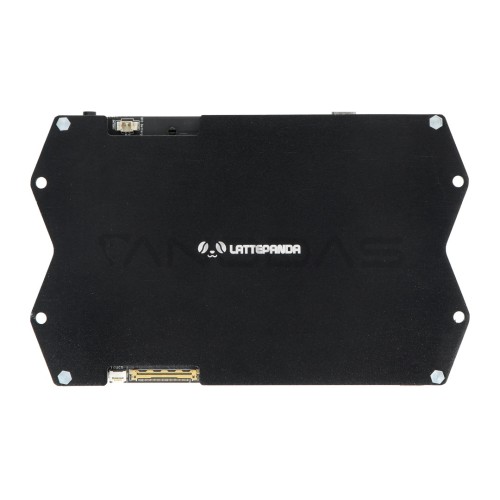

1 x Metal bottom protection plate
2 x Thermopad for M.2 SSD
1 x DC Jack Power Adapter
3 x Power Cord (EU, US, UK)
1 x RTC Battery
1 x User Manual
