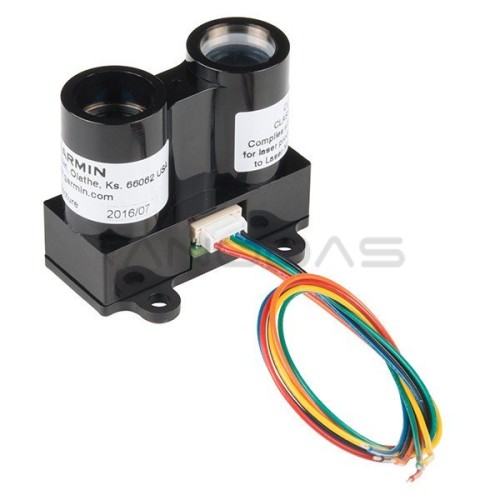

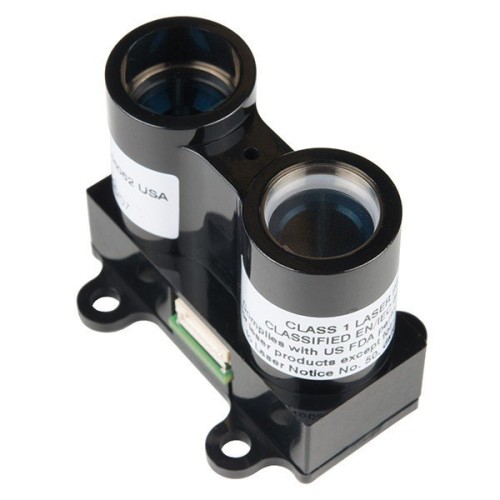

Laser distance sensor Lidar Lite v3 I2C/PWM - 40m - SparkFun SEN-14032

Brand: Sparkfun
Product Code: AN-07410
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-25
186.30€
Ex Tax: 153.97€

Qty

Accurate, laser distance sensor operating in the range from 0 to 40 m with an accuracy of 0,025 m. The supply voltage is from 4.75 V to 5.5 V and consumes up to 130 mA of current. The device communicates via interfaces: I2C or PWM. The length of the projected light wave is 905 nm.

Specification:
  • Supply voltage: 4.75 V to 5 V
  • Current consumption: up to 130 mA
  • Range: 0 to 40 m
  • Accuracy: +/- 0.025 m
  • Working frequency: 500 Hz
  • Operating temperature: -20 °C to 60 °C
  • Communication: PWM or I2C
  • Dimensions: 48 x 40 x 20 mm
